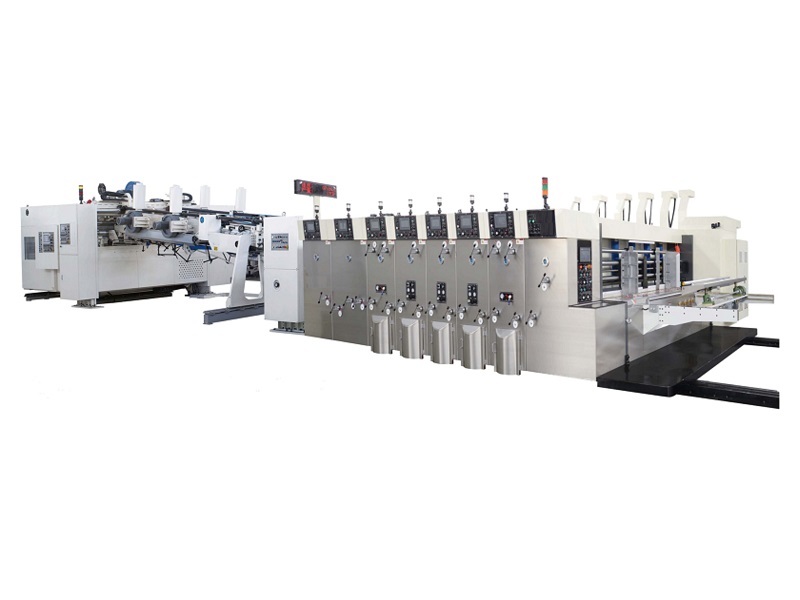

Flexo Folder Gluer
The flexible, customizable corrugated printing equipment will be provided to match your specific production needs
Technical Parameters
| Model | 920 | 1224 | 1424 | 1628 |
| Max. Feeding Paper Format (mm) | 900×2150 | 1200×2550 | 1450×2550 | 1600×2950 |
| Skip Feeding Paper Format (mm) | 1050×2150 | 1350×2550 | 1600×2550 | 1700×2950 |
| Board Thickness Range (mm) | 2-11.5 | 2-11.5 | 2-11.5 | 2-11.5 |
| Max. Printing Format (mm) | 880×2000 | 1180×2400 | 1400×2400 | 1580×2800 |
| Prting Plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 |
| Printing Roller Diameter (mm) | 300 | 405 | 480 | 528 |
| Design speed (pcs/min) | 280 | 260 | 260 | 240 |
| Economic speed (pcs/min) | 180-255 | 180-235 | 180-235 | 150-200 |
| Tinted Precision (mm) | ±0.25 | ±0.25 | ±0.25 | ±0.5 |
| Slotting Precision (mm) | ± 0.75 | ± 0.75 | ± 0.75 | ±1 |
| Max. Groove Depth (mm) | 230 | 315 | 375 | 412 |
| Min. Slotting Interval (mm) | Positive Knife:230×60×230×60 Negative Knife:160×160×160×160 | Positive Knife:230×60×230×60 Negative Knife:160×160×160×160 | Positive Knife:245×60×245×60 Negative Knife:165×165×165×165 | Positive Knife:245×60×245×60 Negative Knife:165×165×165×165 |
| Max. Die Cutting Format (mm) | 850×2050 | 1150×2450 | 1350×2450 | 1550×2950 |
