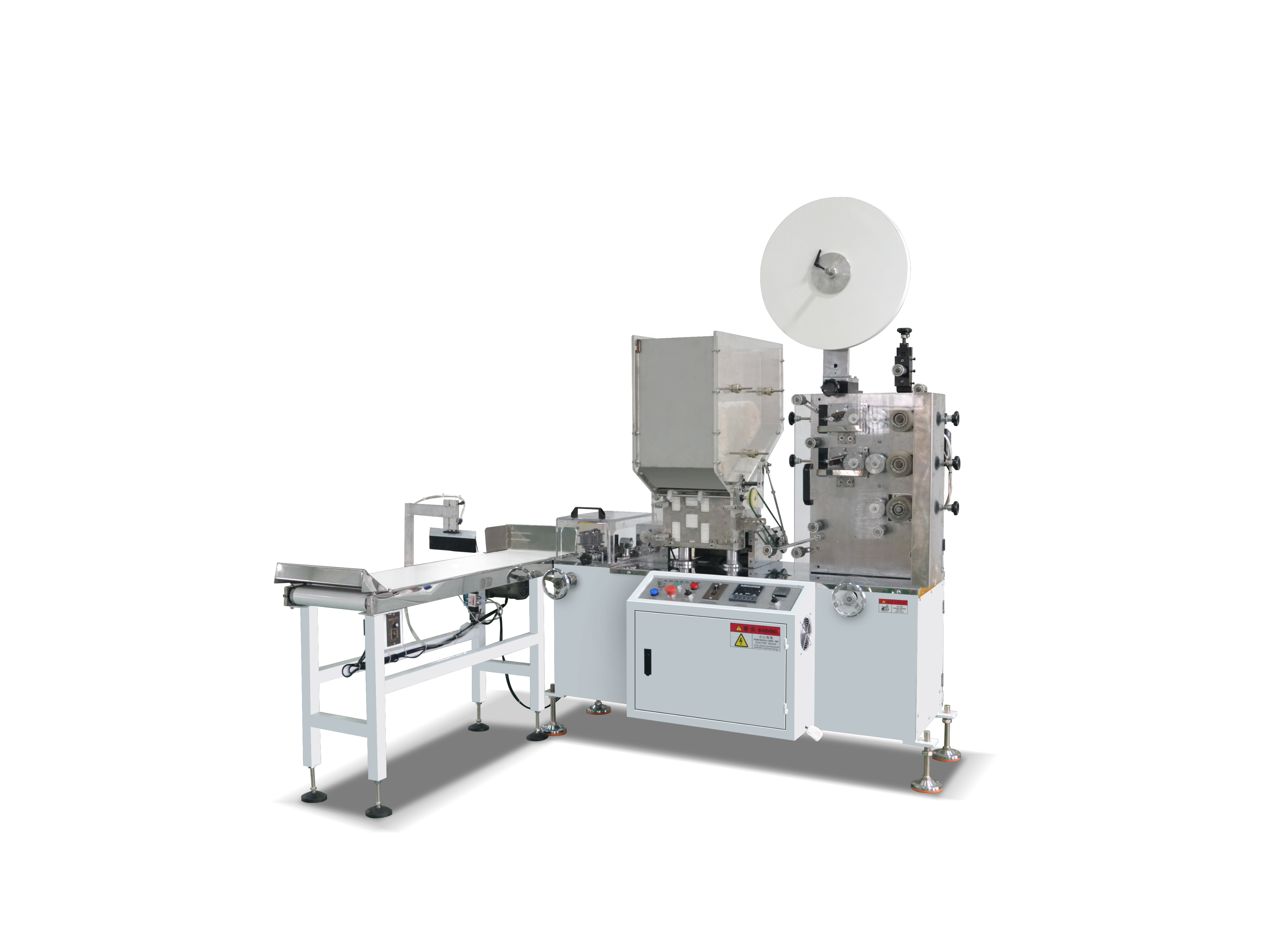

Paper Straw Packing Machine PSP-02
It is used to pack beverage straws into bags automatically with three-sided seals. The whole machine is composed of driving motor, transmission system, paper unwinding device, straws filling device, automatic sealing device, finished product conveying device and so on. It has a high degree of automation and production speed. Printing, filling and packaging are completed at one time.
Introduction
It is used to pack beverage straws into bags automatically with three-sided seals. The whole machine is composed of driving motor, transmission system, paper unwinding device, straws filling device, automatic sealing device, finished product conveying device and so on. It has a high degree of automation and production speed. Printing, filling and packaging are completed at one time.
Features
High speed straw packing machine has 2 colors printing unit
The packing length is adjustable
Machine can do automatic counting, printing, filling, packing at one time
Technical Parameters
|
Model |
PSP-02 |
|
Drink Straw Diameter(mm) |
5(±1), 10(±2) |
|
Straw Length(mm) |
197-260mm By adjust the sealing and cutting mould, printing cylinder |
|
Packing Model |
Paper type: wrap paper Sealing type: 3 side sealing Paper width: 25-30mm |
|
Production Speed |
With printing：350pcs/min |
|
Printing |
2 color |
|
Driving motor |
1.1kw,with inverter controlled |
|
Paper Unwinding Frame |
1SET Tension adjust：Mechanical tension device, adjusted by manual Wrap paper roller core size：3inch，4.7inch |
|
Straw feeding hopper |
Material :Stainless steel frame， Plexiglass: Adjustable to match straw length Straw down device：synchronous motor and swing arm Feeding model：by chain feeding |
|
Sealing Device |
Lengthways sealing：Sealing roller-on couple，pressure adjusted by manual Horizontal：Sealing roller-on couple，pressure adjusted by manual, with cutting knife-one couple Material：mould steel With manual adjust wheel |
|
Conveyor Belt |
1set， Synchronous reduction motor+ controller |
|
Controller |
Counter and buzzers：1set Inverter： 1.5KW, Schneider Temperature controller：1set Speed meter：1set |
|
Total Power (Kw) |
1.5 (220V/380V) |
|
Over size (mm) |
1900×1700×1600 (L×W×H) |
|
Weight (Kg) |
400 |

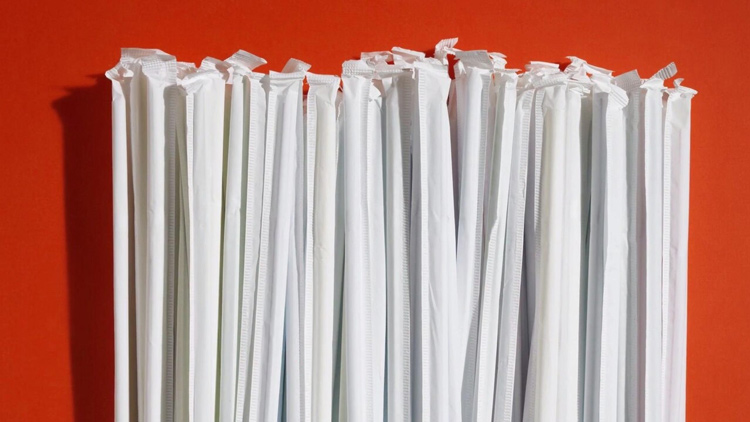

Finished Product
