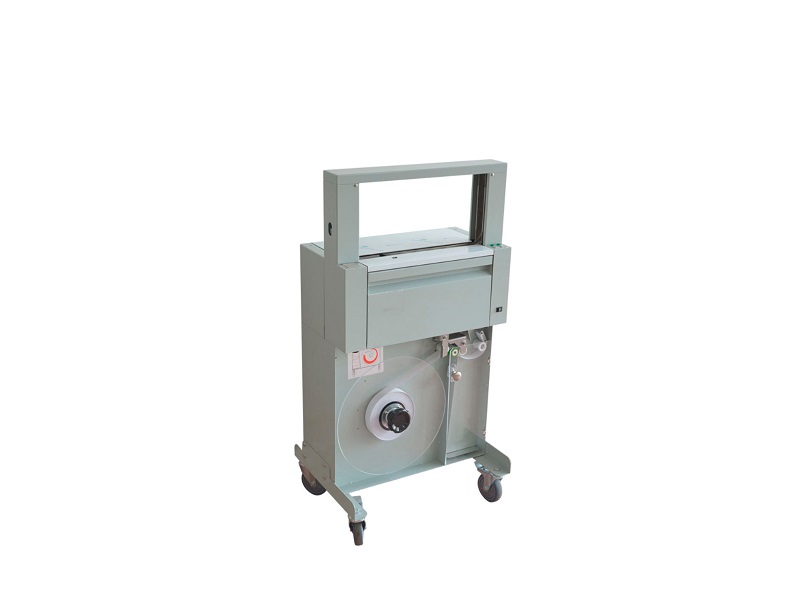

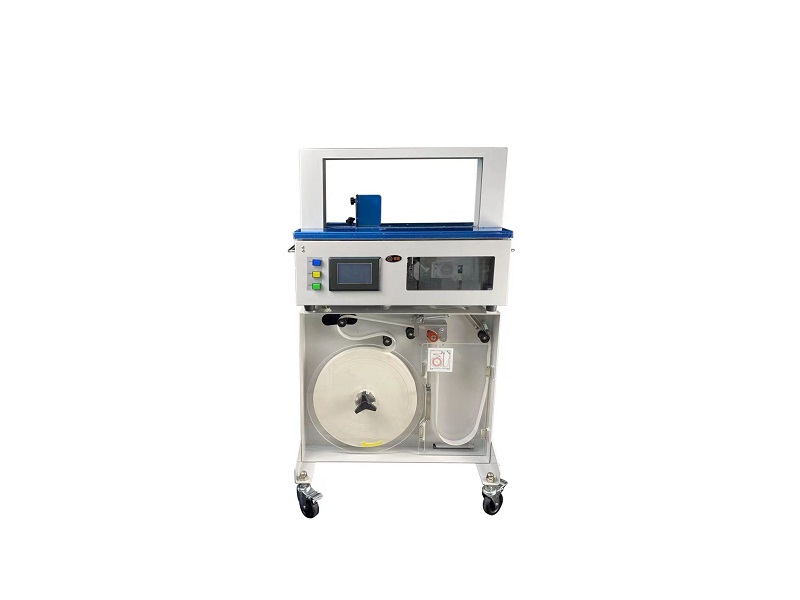

Standing Paper Bander
Paper Bander wraps a strip of craft paper or film around the bundle, providing you with the same security but at a lower cost than a box or bag. The paper bander can be placed near your finishing machine for an efficient finishing and packaging operation. As soon as your pieces are finished and stacked, collect and place them directly on to the bander. The sensor will detect the bundle and automatically wrap a band around it.
Feature
Craft paper and film available
Max. Rewinding length of consumption material 810m
Standing design
Manual or automatic operation
Banding strength adjustable
Cost-effective method of packaging printed material
Technical Parameters
Banding Speed |
26 bundles/min |
Max Banding size |
410mm(W) x 200mm(H) |
Min Banding size |
40mm(W) x 10mm(H) |
Tape Width |
30mm / 40mm / 50mm / 20mm / 25mm |
Tape Types |
Craft paper & OPP film |
Tape Reel Core Diameter |
76mm |
Tape Reel Outer Diameter |
340mm |
Power Supply |
110V/ 220V, 50-60Hz |
Power Consumption |
200W |
Weight |
63kg |
Dimensions |
560mm(W)x1100mm(H)x300mm(D) |
Finished Product
