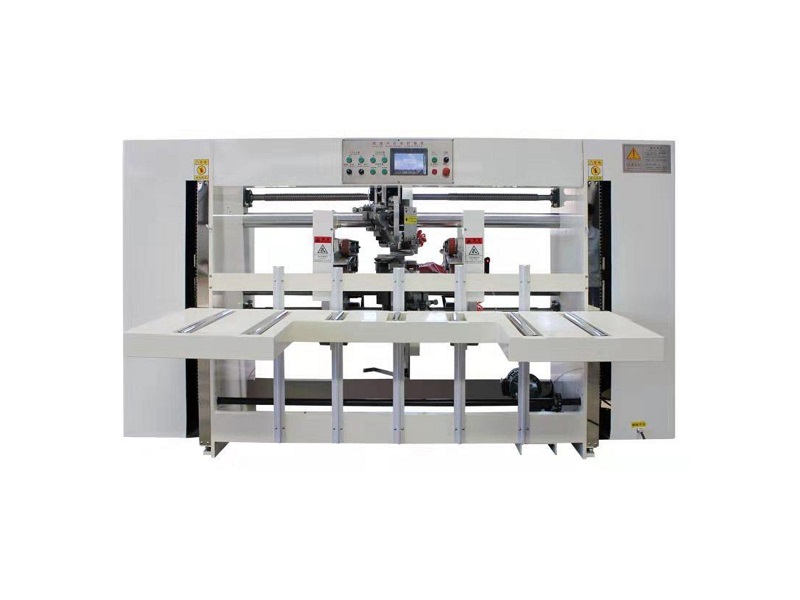

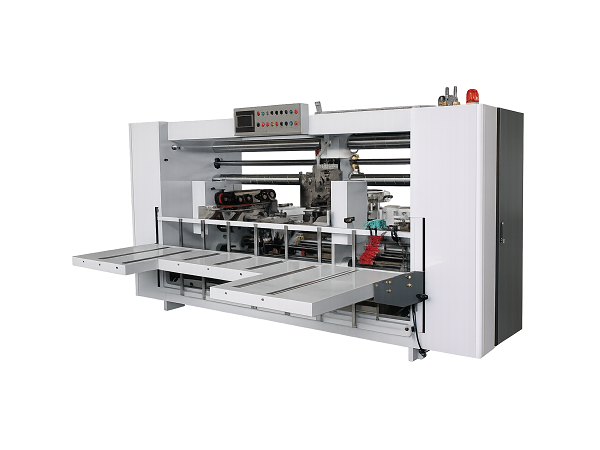

2PCS Stitcher 3600/5200
Four Mitsubishi servo motors and Mitsubishi PLC control
Features
Four Mitsubishi servo motors
Mitsubishi PLC control
With Siemens AC Contactor, Schneider relay, Omron switch
The whole stitching head group made of special steel are processed by CNC
It cost only one minute on changeover job
Can stitch blanks with lid or blanks without lid (If stitching blanks without lid, pls make instruction prior to order )
Can stitch 3 layer, 5layer and 7 layer (If stitching 7 layer, pls make instruction prior to order )
With counter and the photoelectric sensor , it enables the feeding stack lift up automatically
Batch counter function available (The setting range: 2-99)
Can stitch single blank, two same banks and two irregular blanks
Strengthen nail, single nail or double row nail can be made
Technical Parameters
|
Model |
3600 |
5200 |
|

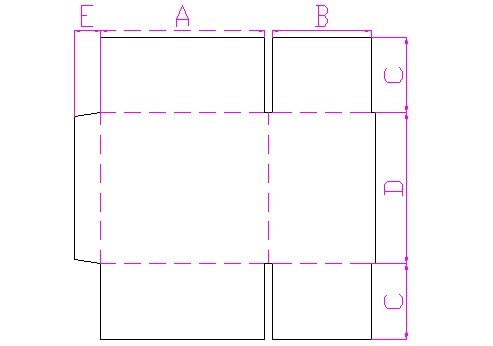

Max (A+B)×2（mm） |
3600 |
5200 |
|
Min (A+B)×2（mm） |
600 |
1100 |
|
Max A (mm) |
1100 |
2400 |
|
Min A (mm) |
150 |
350 |
|
Min B (mm) |
150 |
200 |
|
Min (C+D+C）（mm） |
300 |
300 |
|
Nail Distance (mm) |
20-120 |
30-120 |
|
Number of nails |
2-99 |
2-99 |
|
Nail Speed（times/min） |
600 |
600 |
|
Total Power (kW) |
4 |
6 |
