G-FOLD Hybird 2600
G-FOLD Hybrid series especially suitable for regular slotted container. Itconsist of four sections: feeding unit, gluing & folding unit, stitching unit, counter& stacker unit. It can glue or stich or glue & stitch on three and five layer corrugated material.
Introduction
G-FOLD Hybrid series especially suitable for regular slotted container. Itconsist of four sections: feeding unit, gluing & folding unit, stitching unit, counter& stacker unit. It can glue or stich or glue & stitch on three and five layer corrugated material.
Technical Parameters
|
Model |
G-FOLD Hybrid 2600 |
|
Max. Blank Size (mm) |
900×2500 |
|
Min. Blank Size (mm) |
250×700 |
|
Gluing Speed (m/min) |
150 |
|
Stitching Speed (nails/min) |
600 |
|
Dimensions (mm) |
13500×3200×1600 |
|
Weight |
7000kg |
|
Power Supply |
380V 3P 50HZ |
|
Total Power Consumption |
15 kW |

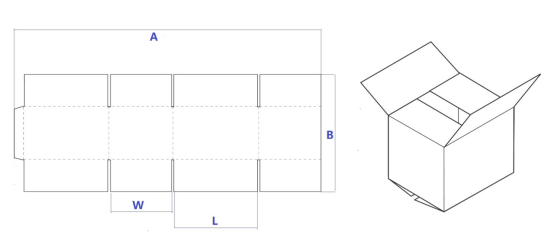

Blank Size
|
Model |
G-FOLDHybrid2600 |
|
Size A（mm） |
700-2500 |
|
Size B（mm） |
250-900 |
|
Size W（mm） |
120-530 |
|
Size L（mm） |
170-750 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Complete Corrugator
The complete corrugator is mainly composed of mill roll stand, single facer, pre-heater, overhead bridge, triple preheater, gluer, double facer, slitter scorer, rotary shear, and stacker.
Cassette Single Facer 300/250/200
Design Speed: 300m/min; 250m/min; 200m/min Effective Width: 1400-2800mm
Learn More

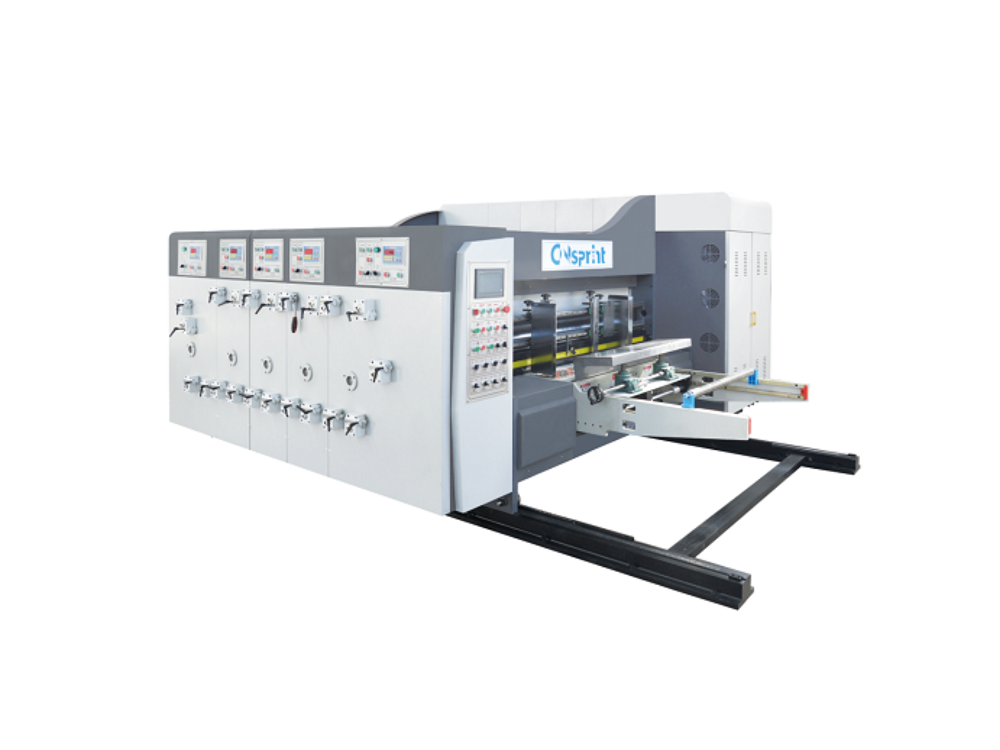

Flexo Printer 717/917/920
The flexible, customizable corrugated printing equipment will be provided to match your specific production needs
Learn More

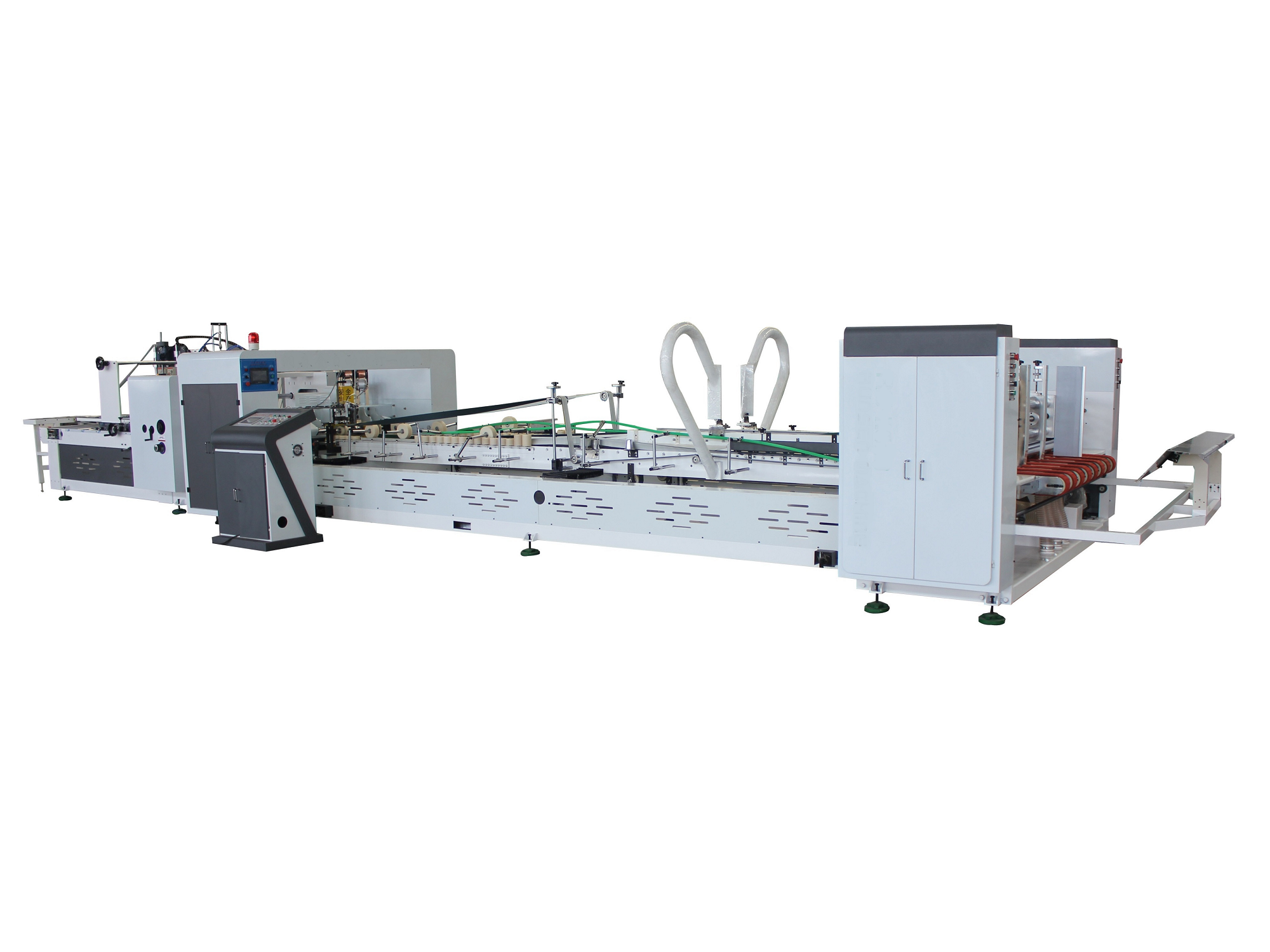

G-FOLD Classic
