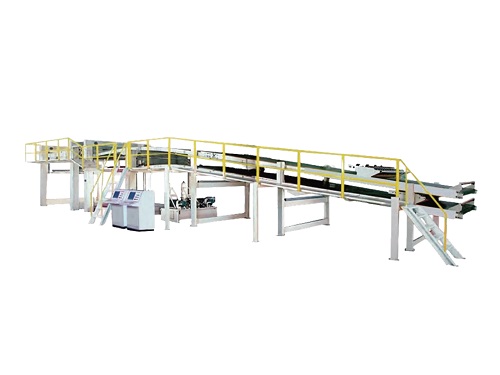

Auto Down Stacker

Design speed: 300m/min

Effective width: 1400mm-2800mm

Stacking Height: 1800mm

Stacking Length: 3000mm

Single-layer stacking device, full servo motor control

Servo-controlled independent conveyor belt, providing different belt rate according to the cardboard length, quantity and speed to keep stacking smooth

Feeding brush is controlled by pneumatic proportional valve, suction control for the front conveyor belt to keep stacking smooth

When the sheets reach the preset amount, with the suction action, the front conveyor belt decelerates, and the rear conveyor belt accelerates, so that each pile of cardboards can be separated more accurately

Multi-order stacking, suitable for small orders

Servo control for the stacking deck to keep stable lifting

Paper-out platform with plastic block track
