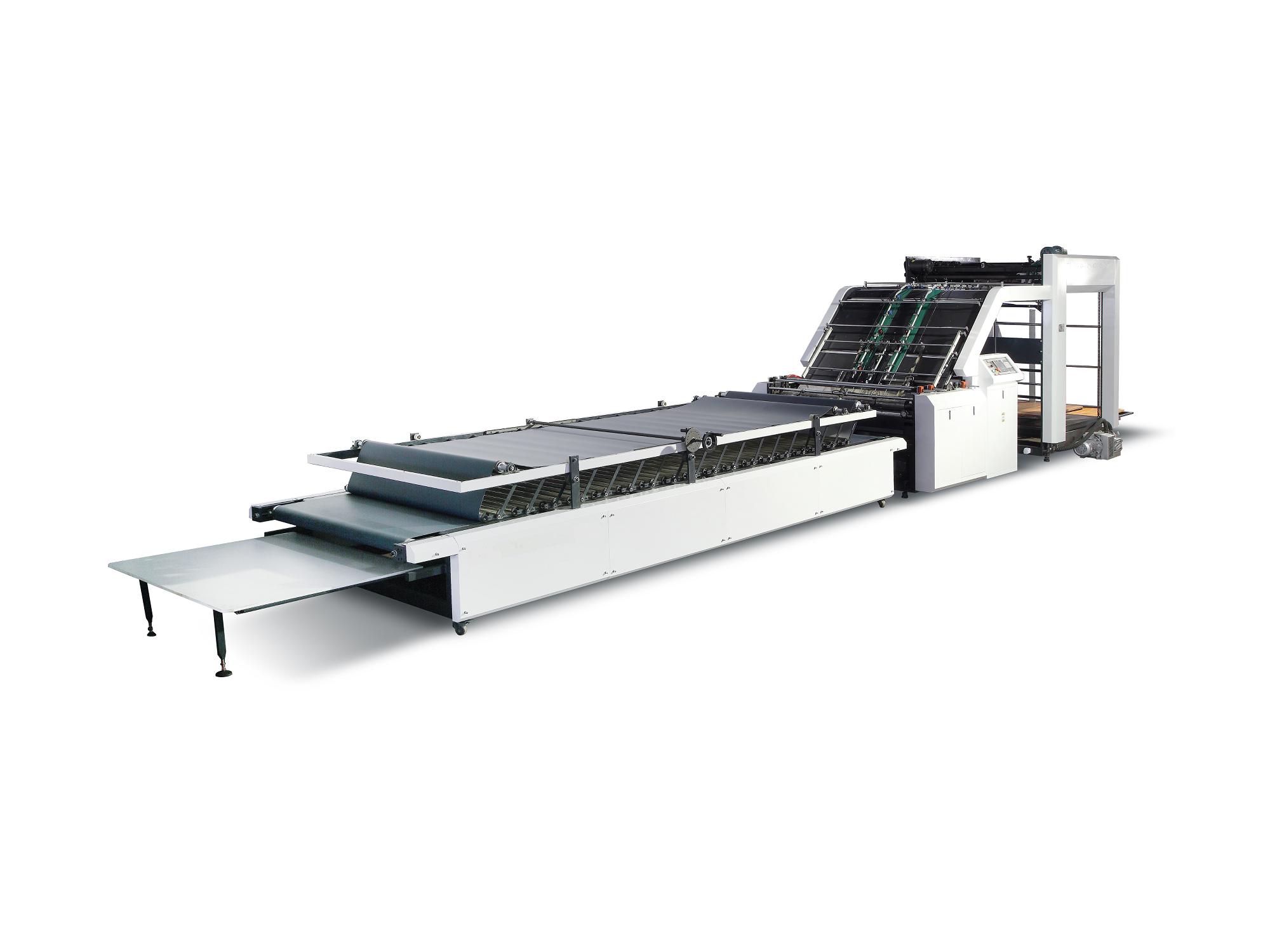

Automatic Flute Laminating Machine TM-1300E/1450E/1650E

Introduction

This machine is fully automatic laminating machine thatcanbe used to laminate paper (175 g/m2. to500 g/m2) tocorrugated board

Feature

The vacuum suction-type feeding system can lead the paper accurately into the machine; cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient

Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet

Machine uses touch-screen/PLC control system, the circuit system is stable, and can automatically display the failure alarm

The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste

Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick

Technical Parameters

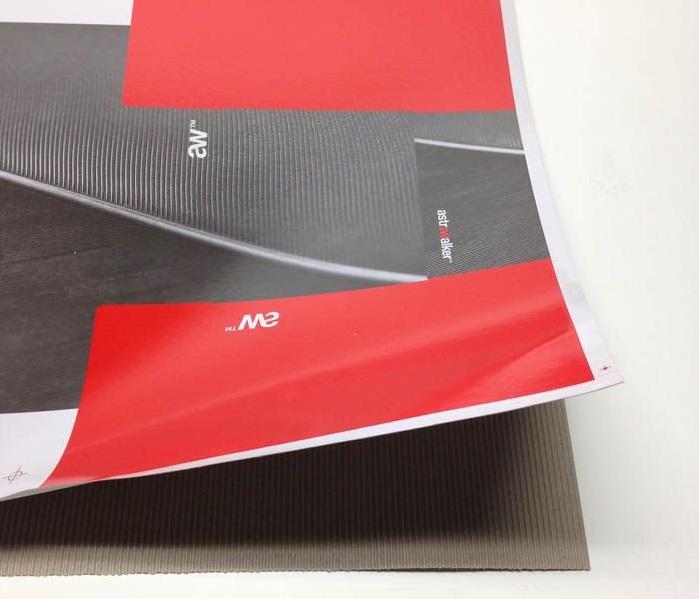

Finished Product
