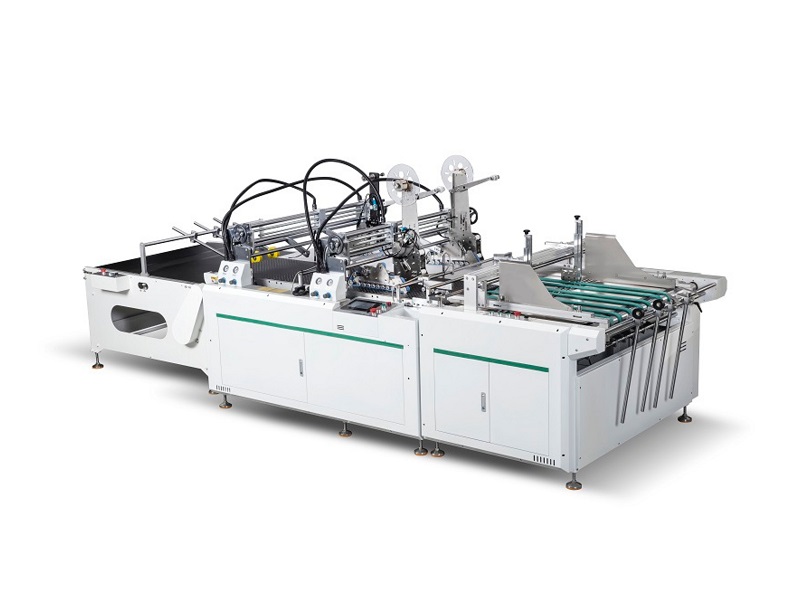

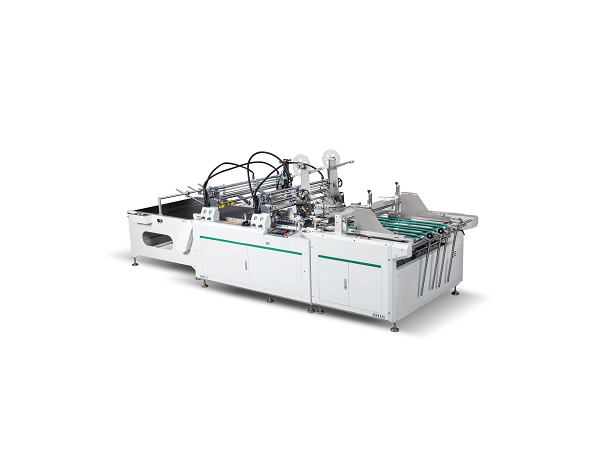

Automatic Tape Applicator
It is designed to apply several types of double side tape and tear strips in a full automatic way. The tapes are applied to common material types such as paper, card and corrugated board. Automatic tape applicator are favoured over manual hand application of adhesive tapes for their increased speed and productivity in manufacturing processes.
Introduction
It is designed to apply several types of double side tape and tear strips in a full automatic way. The tapes are applied to common material types such as paper, card and corrugated board. Automatic tape applicator are favoured over manual hand application of adhesive tapes for their increased speed and productivity in manufacturing processes.
Technical Parameters
|
Model |
900TA |
|
Max. Feeding Paper Format |
900×900mm |
|
Min. Feeding Paper Format |
100×70mm |
|
Paper Range |
Cardboard≥157g Corrugated≤8mm |
|
Tape Width |
6-35mm(Option:10-80mm) |
|
Tape Applicator Head |
2-4 pcs |
|
Speed |
50-110m/min |
|
Accuracy |
±1mm |
|
Power Consumption |
1.5kW AC220V |
|
Dimension (L×W×H) |
4215×1440×1600mm |
|
Weight |
700kg |
