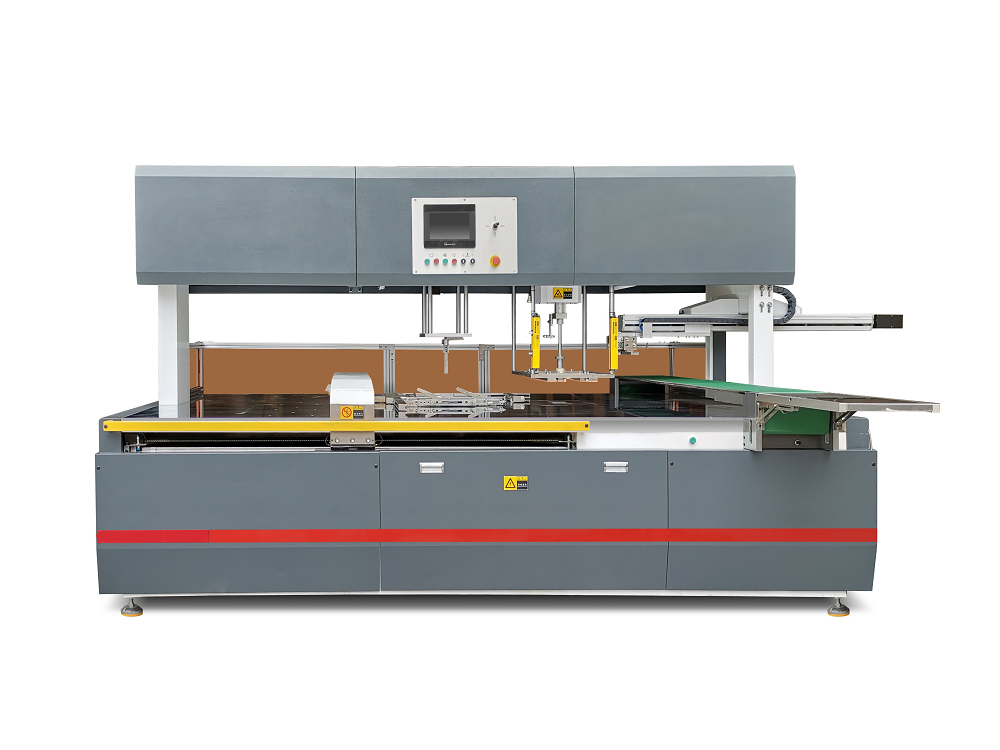

Blank Separator SPQF-1080CTR
This series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Introduction
This series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Feature
180 degree rotary die
The robot replace the person to take the product
With punching station
Hidden type servo motor and ball screw ensures a precise pile positioning
Adjustable hydraulic system provides adjustable pressure for processing of different materials of different sizes and weight.
Stripping needles (rods) are quick and easy to change to fit different products format and patterns.
Automatic lubricating system carries out regular lubrication, which greatly extend the service life of the machine.
The operation panel adopts visual button to avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
Safety fence at operation side protects the safety of personnel when the machine is running.
Technical Parameters
|
Model |
SPQF-1080CTR |
|
Max sheet size(mm) |
1050x720 |
|
Min sheet size(mm) |
500x400 |
|
Max pile height(mm) |
100 |
|
Min pile height(mm) |
40 |
|
Bench height(mm) |
850 |
|
Max stripping size(mm) |
520x520 |
|
Min stripping size(mm) |
50x50 |
|
Max. punching size |
150x150 |
|
Min. punching size |
8x15 |
|
Stripping speed(times/min) |
15-22 |
|
Max force(bar) |
70 |
|
Air consumption(L/min) |
4 |
|
Power Consumption (kW) |
6 |
|
Rotary die speed (s) |
10-80 |
|
Rotary die stroke |
0-180° |
|
Robot grip range (mm) |
30-300 |
|
Robot grip weight (g) |
50-1800 |
|
Machine dimension(mm) |
4290 x 2490 x 2018 |
|
Machine Weight(kg) |
3200 |
|
Gross weight (kg) |
3400 |
|
Package Size(mm) |
4500 x 2700 x 2150 |
