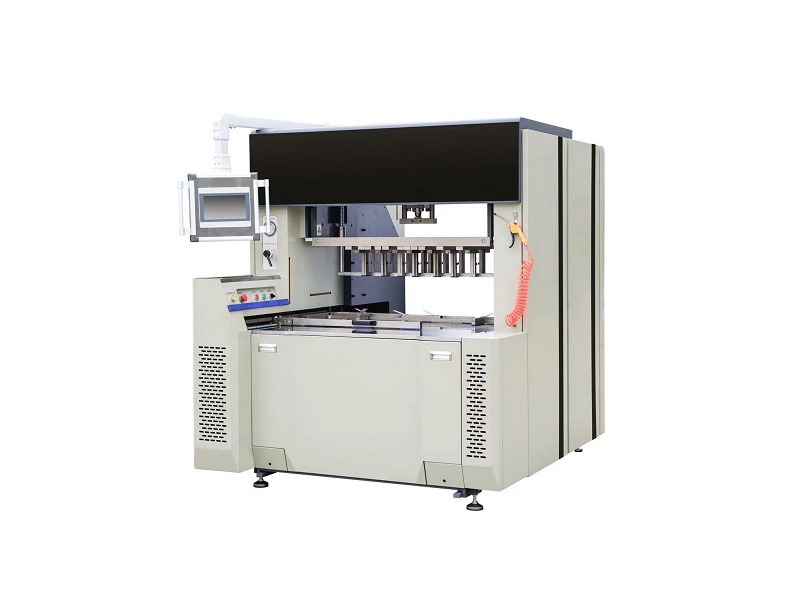

Blank Separator SPQF-1080R
SPQF series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Introduction
SPQF series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Features
Replaces hand stripping with an automated process
Increases productivity at converting
Reduces headcount
Strips folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Simple low-cost tooling
Optional system configurations available
Apply to all kinds of auto die cutting machine and semi-auto die cutting machine
No more hand stripping, raising production and increasing efficiency
Technical Parameters
|
Model |
SPQF-1080R |
|
Max sheet size(mm) |
1080x780 |
|
Min sheet size(mm) |
450x280 |
|
Max pile height(mm) |
80 |
|
Min pile height(mm) |
40 |
|
Max stripping size(mm) |
1050x550 |
|
Min stripping size(mm) |
40x80 |
|
Stripping speed(times/min) |
15 |
|
Max pressure(bar) |
120 |
|
Machine dimension(mm) |
1700 x 2100 x 2050 |
|
Machine Weight(kg) |
2600 |
|
Power Voltage(V) |
360-420 |
|
Frequency(HZ) |
50/60 |
|
Max consumption power(KW) |
6.5 |
