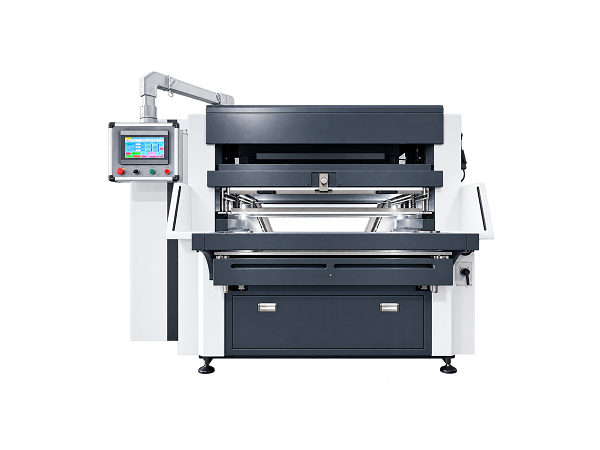

Blank Separator SPQF-1080T eco
SPQF series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Introduction
SPQF series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Features
Replaces hand stripping with an automated process
Increases productivity at converting
Reduces headcount
Strips folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Simple low-cost tooling
Optional system configurations available
Apply to all kinds of auto die cutting machine and semi-auto die cutting machine
No more hand stripping, raising production and increasing efficiency
Technical Parameters
|
Model |
SPQF-1080T eco |
|
Max. Sheet Size (mm) |
1080 x 780 |
|
Max. Stacking Height (mm) |
80 |
|
Speed (times/min) |
5 |
|
Max stripping size(mm) |
1060 x 760 |
|
Min stripping size(mm) |
35 x 35 |
|
Max. Pressure |
100Bar |
|
Power Supply |
4kW, 380V 3P 50Hz |
|
Air Supply |
65L/min, 0.5-0.6Mpa |
|
Machine Weight (kg) |
2580 |
|
Dimension(L x W x H) (mm) |
2100 x 1760 x 1700 |
