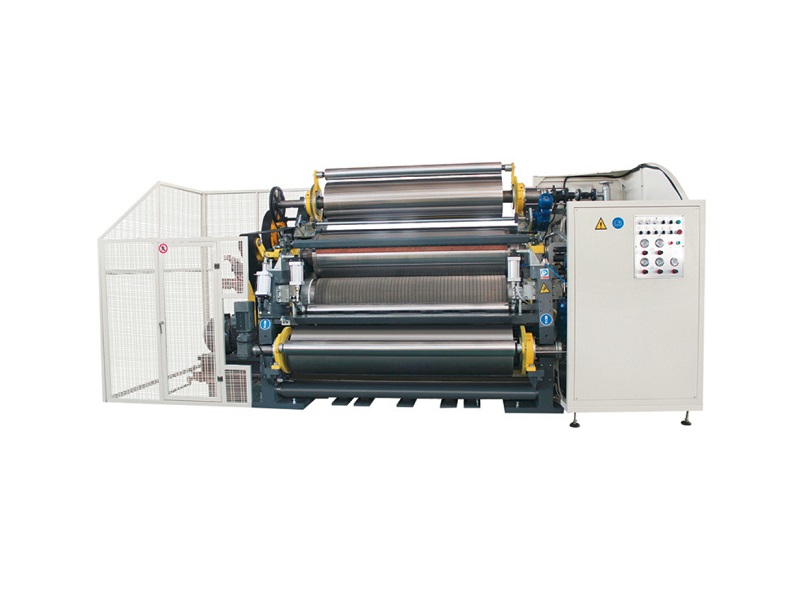

Cassette Single Facer 300/250/200
Design Speed: 300m/min; 250m/min; 200m/min Effective Width: 1400-2800mm
Cassette Single Facer 300
Design Speed: 300m/min
Effective Width: 1400-2800mm
Corrugated Roll Diameter: Upper 408mm/Lower 320mm
Pressure Roller Diameter: 500mm
PLC Auto Control Glue Thickness
Glue unit with cooling and clean system
Cartage fast change roller with auto lock roller system
Cassette Single Facer 250
Design Speed: 250m/min
Effective Width: 1400-2800mm
Corrugated Roll Diameter: Upper 360mm/Lower 320mm
Pressure Roller Diameter: 500mm
PLC Auto Control Glue Thickness
Glue unit with cooling and clean system
Cartage fast change roller with auto lock roller system
Cassette Single Facer 200
Design Speed: 200m/min
Effective Width: 1400-2500mm
Corrugated Roll Diameter: Upper 320mm/Lower 320mm
Pressure Roller Diameter: 400mm
PLC Auto Control Glue Thickness
Glue unit with cooling and clean system
Cartage fast change roller with auto lock roller system
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Complete Corrugator
The complete corrugator is mainly composed of mill roll stand, single facer, pre-heater, overhead bridge, triple preheater, gluer, double facer, slitter scorer, rotary shear, and stacker.
