Diamond

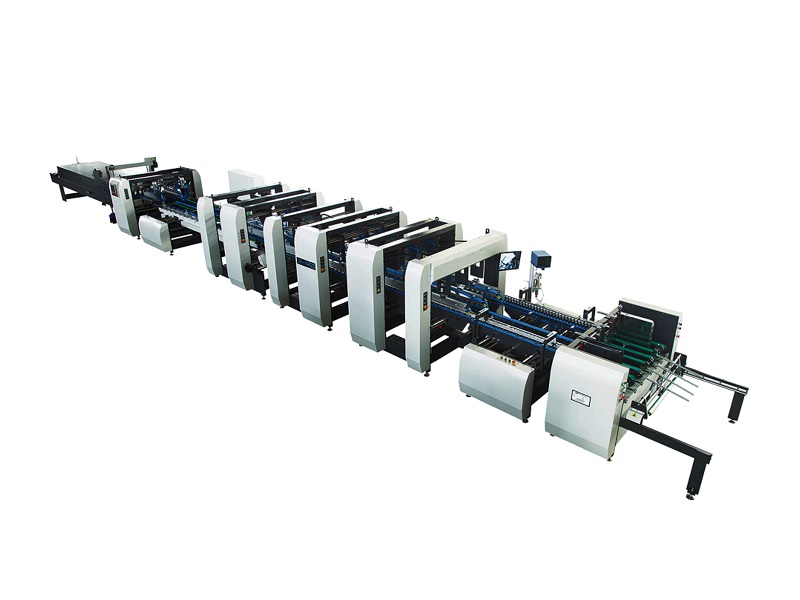

Diamond series work with medium and large sized boxes in the heavy packaging industry. With high productivity, it offers the flexibility to run thin solid board to thick corrugated carton.Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
Diamond 1500/1700/2100/2300/2800/3200-L
suitable for straight-line, crash-lock bottom and double wall boxes
Diamond 1500/1700/2100/2300/2800/3200-LS
suitable for straight-line, crash-lock bottom, double wall and 4&6 corner boxes
Introduction
Diamond series work with medium and large sized boxes in the heavy packaging industry. With high productivity, it offers the flexibility to run thin solid board to thick corrugated carton.Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
Technical Parameters
| Model | 1500 | 1700 | 2100 | 2300 | 2800 | 3200 |
| Paper Material | 300-800g/m2 Paperboard F,E,C,B,A,EB,AB,EF Corrugated | |||||
| Max. Speed | 200m/min | |||||
| Machine Length | 23600mm | |||||
| Machine Width | 2240mm | 2440mm | 2840mm | 3040mm | 3540mm | 3940mm |
| Total Power Consumption | 42kW | 45kW | ||||
| Max. Air Displacement | 0.7m³/min | |||||
| Net Weight | 15500kg | 16000kg | 16500kg | 17000 | 18000kg | 20000kg |
Blank Size
|
Blank Size |
Diamond | 1500 | 1700 | 2100 | 2300 | 2800 | 3200 |
 |
A | 420-1450 | 420-1700 | 520-2100 | 520-2300 | 520-2800 | 520-3200 |
| B | 150-1300 | 150-1300 | 150-1300 | 150-1300 | 150-1300 | 150-1300 | |
| C | 205 Min | 205 Min | 275 Min | 275 Min | 275 Min | 275 Min | |
| D | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | |
 |
A | 420-1450 | 420-1700 | 520-2100 | 520-2300 | 520-2800 | 520-3200 |
| B | 205 Min | 205 Min | 275 Min | 275 Min | 275 Min | 275 Min | |
| C | 100-840 | 100-840 | 100-840 | 100-840 | 100-840 | 100-840 | |
| D | 35-300 | 35-300 | 35-300 | 35-300 | 35-300 | 35-300 | |
| E | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | |
 |
A | 260-1200 | 260-1480 | 290-1580 | 290-1680 | 290-1880 | 290-1880 |
| B | 200-1140 | 200-1420 | 250-1500 | 250-1600 | 250-1800 | 250-1800 | |
| C | 30-200 | 30-200 | 40-250 | 40-250 | 40-250 | 40-250 | |
| D | 1000 Max | 1000 Max | 1100 Max | 1100 Max | 1100 Max | 1100 Max | |
| E | 100 Min | 100 Min | 150 Min | 150 Min | 150 Min | 150 Min | |
 |
A | 1200 Max | 1400 Max | 1750 Max | 1750 Max | 2100 Max | 2100 Max |
| B | 800 Max | 1000 Max | 1000 Max | 1000 Max | 1000 Max | 1000 Max | |
| C | 100 Min | 100 Min | 150 Min | 150 Min | 150 Min | 150 Min | |
| D | 500 Max | 600 Max | 650 Max | 700 Max | 800 Max | 900 Max | |
| E | 35-200 | 35-200 | 50-200 | 50-200 | 50-200 | 50-200 | |
 |
A | 420-1450 | 420-1700 | 520-2100 | 520-2300 | 520-2800 | 520-3200 |
| B | 180-1300 | 180-1300 | 180-1300 | 180-1300 | 180-1300 | 180-1300 | |
| C | 205 Min | 205 Min | 275 Min | 275 Min | 275 Min | 275 Min | |
| D | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min |
