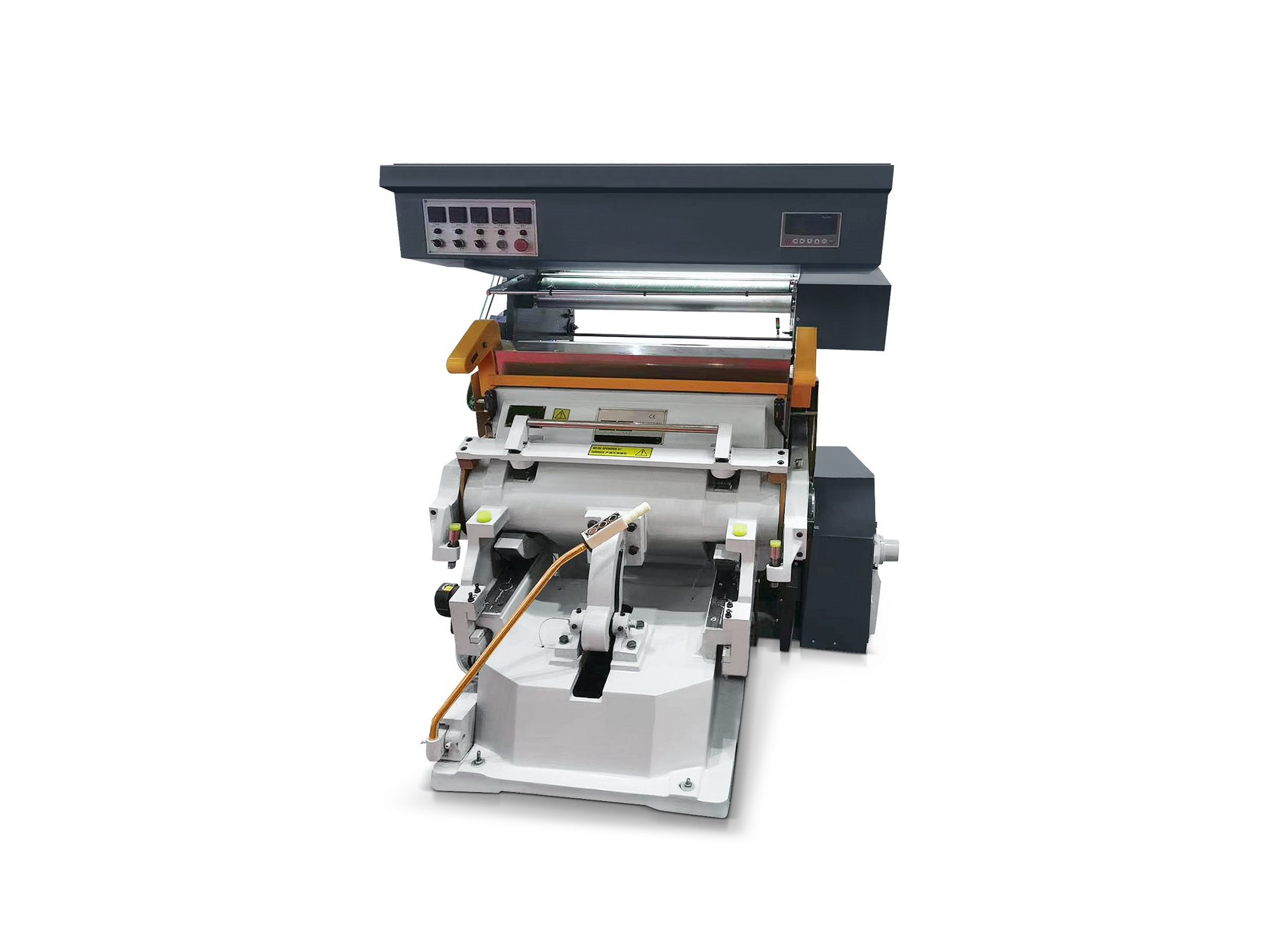

Hot Foil Stamper PUMA 750K/930K/1100K
It is used for gilding-printing all kinds of colored electro-chemical aluminum, making a concave-convex die cutting pictures, trade mark, advertisement of sample, boxes, cover of books and new year cards, highly decorations and printing materials.
Introduction
PUMA series gold stamping machine is the product of new generation with clockwork precision and market effect. It is used for gilding-printing all kinds of colored electro-chemical aluminum, making a concave-convex die cutting pictures, trade mark, advertisement of sample, boxes, cover of books and new year cards, highly decorations and printing materials. It is the optimum equipment for printing & packing decoration and plastic industries with materials including paper, cardboard, plastic, leather matters
Features
High strength due to one piece casting by using top-ranking material for machine body
Single plate electromagnetic clutch is sensitive and reliable
Computer controlled is stable
Operation position is reasonably arranged, moving-bed can be opened to its optimum
Skipping is accurate so as to save foils
With three functions of continuous creasing and cutting,opening dwell operation and closing dwell operation and a large dwell adjusting range
Safety system is reliable
Central lubrication system guarantees fine lubrication and reduce friction
Technical Parameters
| Model | PUMA 750K | PUMA 930K | PUMA 1100K |
| Working Area Of Platen (L×W) | 750x520 mm | 930x670 mm | 1100x800 mm |
| Max Stamping Area (L×W) | 660x480 mm | 930x640 mm | 1100x800 mm |
| Range of skip order | Built-in Processing with computer | Built-in Processing with computer | Built-in Processing with computer |
| Working pressure | 150T | 170T | 220T |
| Foil-delivered length | 520mmn | 640mm | 800mm |
| Foil-delivered group | 2 groups | 3 groups | 3 groups |
| Working speed | 1600(strokes/h) | 1320(strokes/h) | 1200(strokes/h) |
| Main motor power | 2.2kw-6H | 4kw-4H | 4kw-6H |
| Total power | 7kw | 13kw | 16kw |
| N.W | 2200kg | 3500kg | 4700kg |
| Dimension(L×W ×H) | 1900x1450x1950mm | 1800x1900x2150mm | 2150x2150x2300mm |
