CE Die Cutting Machine ML-1500/1600/1800/2000/2200/2500

Introduction

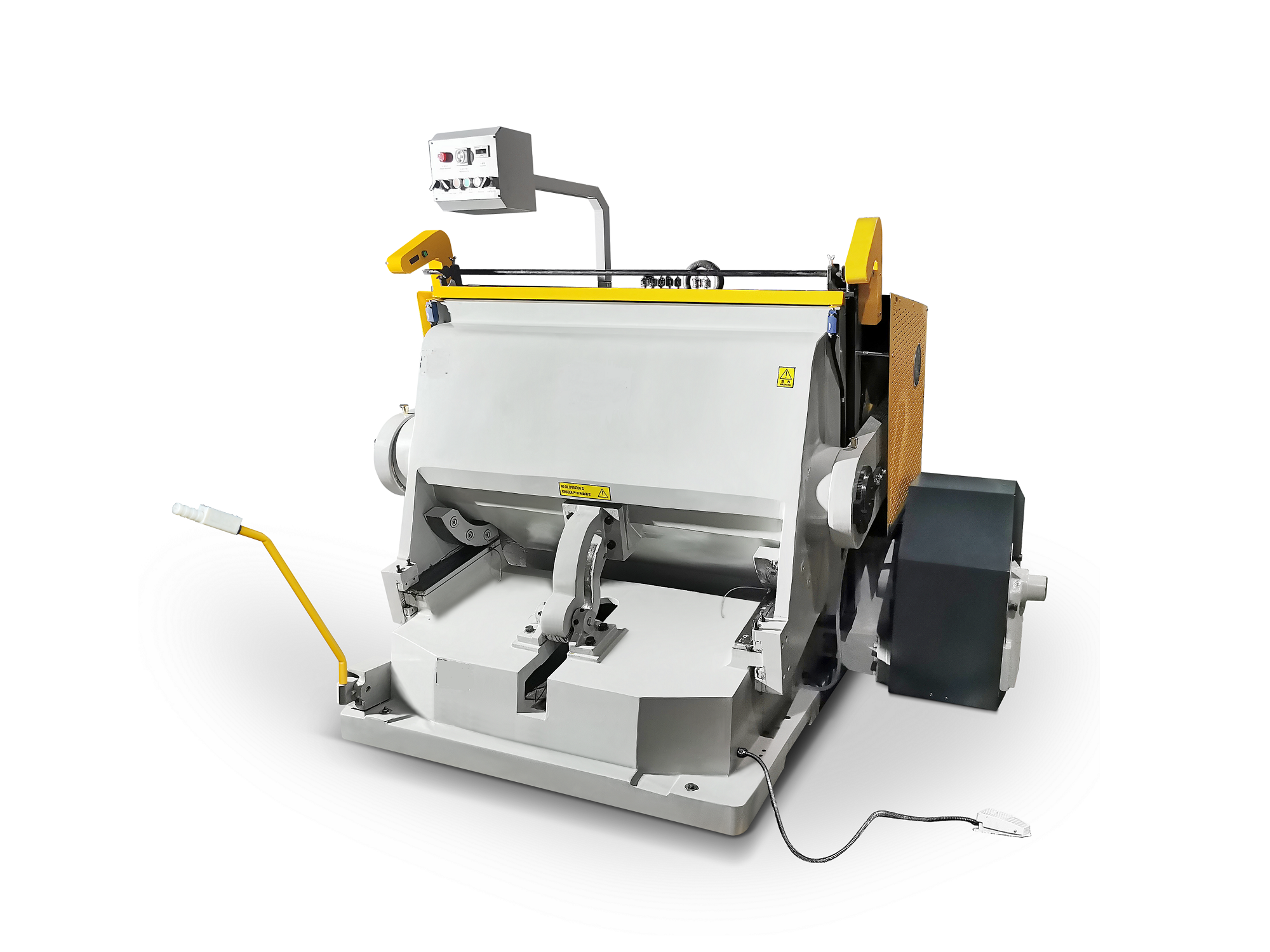

ML series hand feeding die cutting & creasing machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of materials, such as paper, cardboard, corrugated board, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and low cost in price

Features

Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing

Flywheel with big moment of force and large pressure

High strength due to whole iron casting by using high quality material for machine body

Single plate electromagnetic clutch is sensitive and reliable

With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 0-99 seconds

Operating position is reasonably designed; moving-bed can be opened to its optimum

Auto lubrication system guarantees fine lubrication and reduces friction

Safety protection system is reliable

Adjustable chase clamp structure can adapt all kind of die mould plate

Siemens AC Contactor, LG Air Switch

Protective cover

Car printing

Equipped with stainless steel plate

Qualify for CE Standard

Technical Parameters
