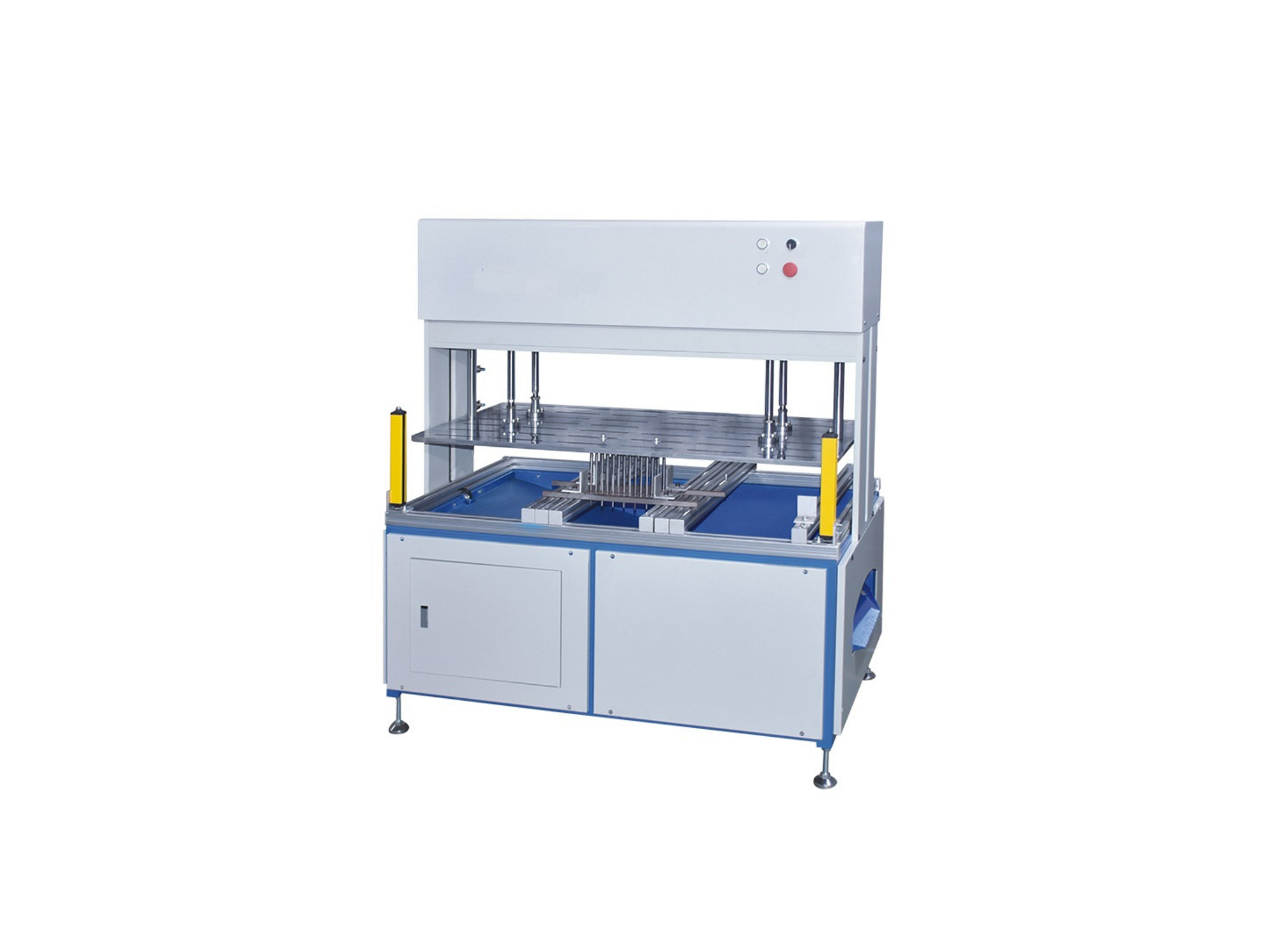

Inner Hole Waste Stripper
It is a pneumatic driven machine to strip inner hole such as plane holes, round holes, square holes, long strip holes, heterosexual holes, etc. on the cardboard, corrugated, plastic, foam, rubber, etc.
Introduction
It is a pneumatic driven machine to strip inner hole such as plane holes, round holes, square holes, long strip holes, heterosexual holes, etc. on the cardboard, corrugated, plastic, foam, rubber, etc.
Advantage
Several of molds can be fixed on the adjustable plate to strip the variety of holes
Reduce the loss of products caused by manual waste removal and improve product quality
Increased production efficiency by 30%-50%. For jobs with many holes, the advantage is much more obvious
Easy to debug and easy operation
Small space occupation
Technical Parameters
|
Model |
INNERhole800 |
|
Max. Sheet Size (mm) |
800x550 |
|
Max. Stripping Size (mm) |
600x420 |
|
Max. Pile Height (mm) |
30 - 100 |
|
Min. Hole Diameter (mm) |
2 |
|
Max. Pressure (kg) |
800 |
|
Air Cylinder No. |
2 pcs |
|
Air Consumption (L/min) |
3-5 |
|
Power Consumption (kW) |
2-3 |
|
Power Supply |
100-240V 50/60Hz |
|
Dimension (mm) |
800x650x1350 |
|
Net Weight (kg) |
110 |

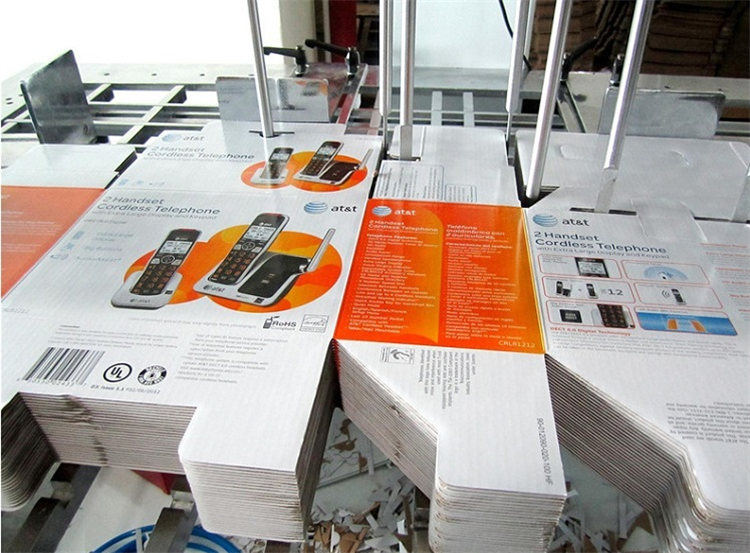

Finished Product
