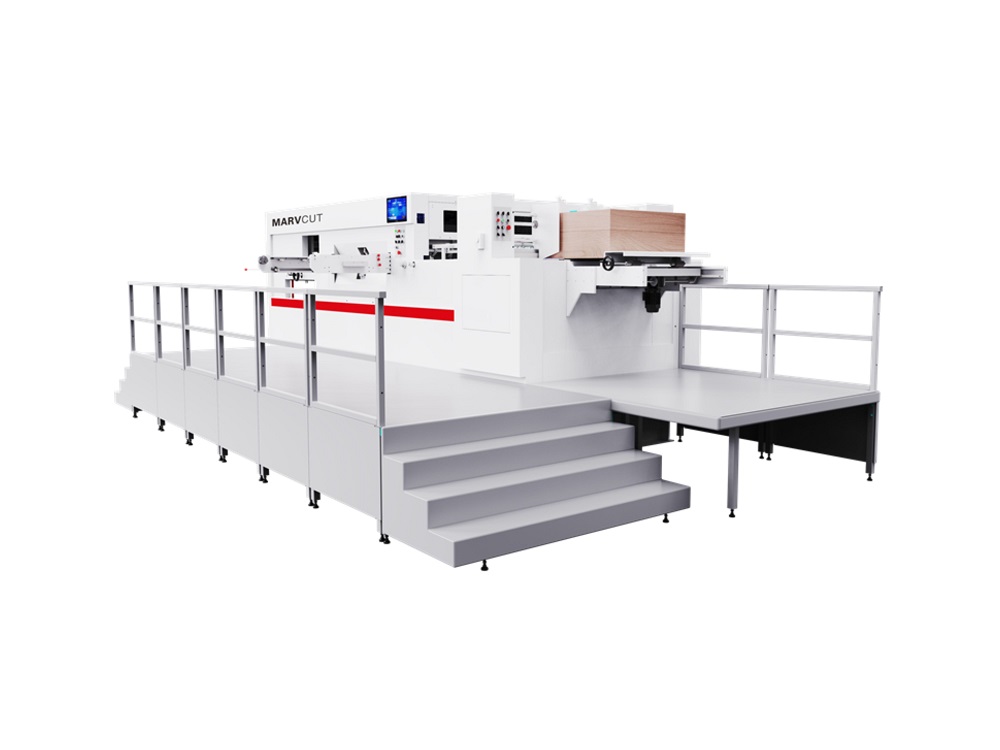

MARVCUT 130QY/150QY/165QY
This machine is mainly used for die cut the corrugated board. From feeding to delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Introduction
This machine is mainly used for die cut the corrugated board. From feeding to delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Technical Parameters
| Model | MARVCUT 130QY | MARVCUT 150QY | MARVCUT 165QY |
| Max. Feeding Paper Format | 1300×950mm | 1500×1100mm | 1650×1200mm |
| Min. Feeding Paper Format | 550×480mm | 550×500mm | 650×520mm |
| Max. Die cutting Format | 1290×920mm | 1490×1090mm | 1630×1180mm |
| Max. Working Pressure | 350t | 400t | 400t |
| Paper Range | Corrugated ≤8mm(max) | Corrugated ≤8mm(max) | Corrugated ≤8mm(max) |
| Cardboard ≥250g | Cardboard ≥250g | Cardboard ≥250g | |
| Die cutting Precision | ±0.25 mm | ±0.25 mm | ±0.25 mm |
| Max. Speed | 6500 sheets/hour | 5500 sheets/hour | 5000 sheets/hour |
| Max. Feeding Pile Height | 500mm | 500mm | 500mm |
| Max. Delivery Pile Height | 1200mm | 1200mm | 1300mm |
| Main Motor Power Consumption | 15kW | 18.5kW | 18.5kW |
| Total Power Consumption | 33.5kW | 37.5kW | 37.5kW |
| Total Weight | 16t | 19t | 22t |
| Dimension (L×W×H) | 7273×4397×2274mm | 7840×4577×2489mm | 8693×4938×2540mm |
