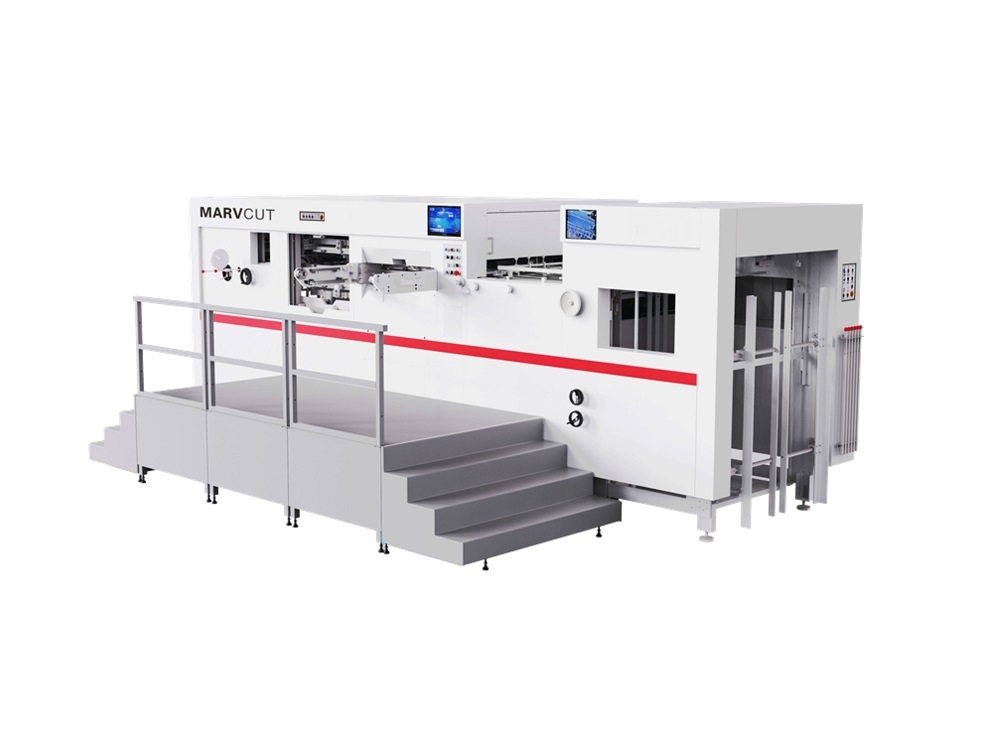

MARVCUT 130SQ/150SQ/165SQ
With shaftless and servo control air feeder and synchronized belt transmission on the intermittent system
Introduction
This machine is mainly used for the die-cutting and creasing of carton box or label in packaging industry. From paper feeding to paper delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Technical Parameters
| Model | MARVCUT 130QY | MARVCUT 150QY | MARVCUT 165QY |
| Max. Feeding Paper Format | 1300×950mm | 1500×1100mm | 1650×1200mm |
| Min. Feeding Paper Format | 550×480mm | 550×500mm | 650×520mm |
| Max. Die cutting Format | 1290×920mm | 1490×1090mm | 1630×1180mm |
| Max. Working Pressure | 350t | 400t | 400t |
| Paper Range | Corrugated ≤8mm(max) | Corrugated ≤8mm(max) | Corrugated ≤8mm(max) |
| Cardboard ≥250g | Cardboard ≥250g | Cardboard ≥250g | |
| Die cutting Precision | ±0.25 mm | ±0.25 mm | ±0.25 mm |
| Max. Speed | 6500 sheets/hour | 5500 sheets/hour | 5000 sheets/hour |
| Max. Feeding Pile Height | 500mm | 500mm | 500mm |
| Max. Delivery Pile Height | 1200mm | 1200mm | 1300mm |
| Main Motor Power Consumption | 15kW | 18.5kW | 18.5kW |
| Total Power Consumption | 33.5kW | 37.5kW | 37.5kW |
| Total Weight | 16t | 19t | 22t |
| Dimension (L×W×H) | 7273×4397×2274mm | 7840×4577×2489mm | 8693×4938×2540mm |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
MARVCUT 80S
With shaftless and servo control air feeder and synchronized belt transmission on the intermittent system
Learn More
MARVCUT 130S/150S/165S
With shaftless and servo control air feeder and synchronized belt transmission on the intermittent system
MARVCUT 106SQ
With shaftless and servo control air feeder and synchronized belt transmission on the intermittent system
Learn More

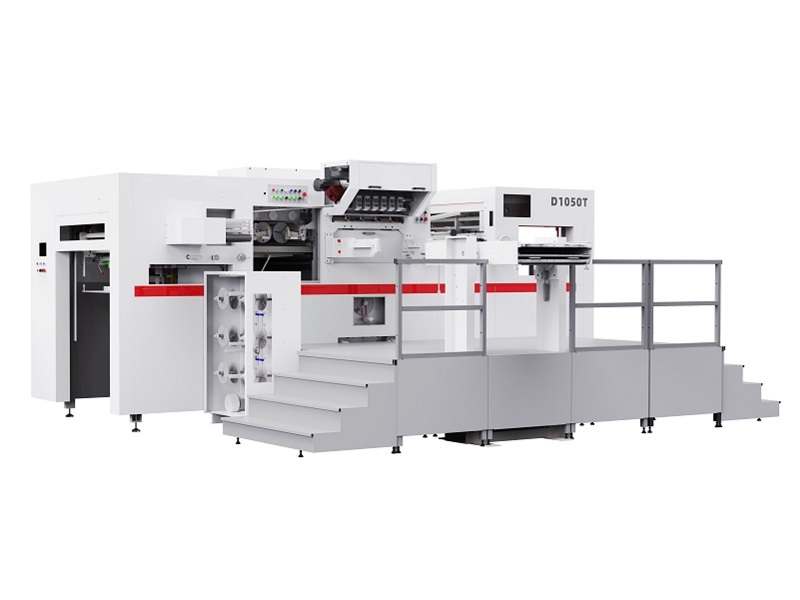

MARVFOIL 105T
