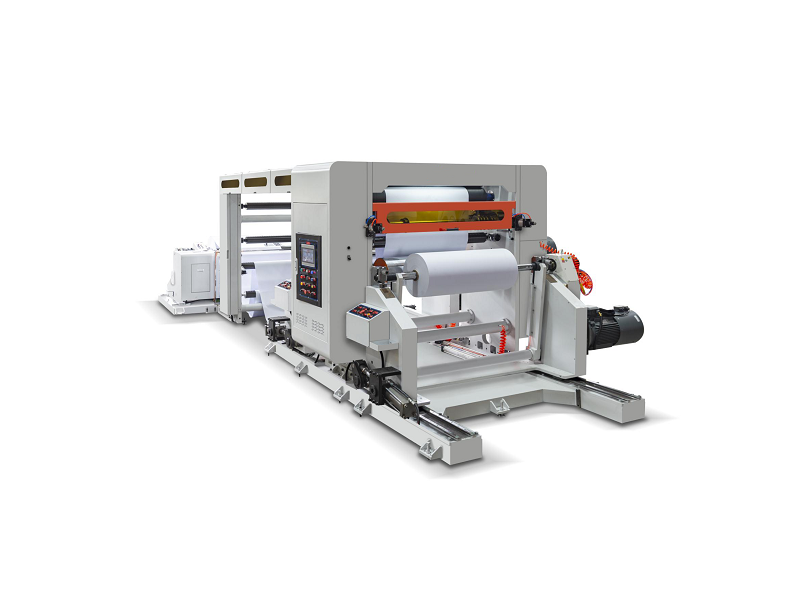

Slitter Rewinder J series
It is suitable for slitting and rewinding large wide jumbo rolls, like various papers, adhesive label, or some laminates into narrow-width rolls. We specially designed it with a large unwind and rewind diameter 1500mm to fulfill the customers’ requirements of acquiring finished rewinding rolls with big diameter.
Introduction
It is suitable for slitting and rewinding large wide jumbo rolls, like various papers, adhesive label, or some laminates into narrow-width rolls. We specially designed it with a large unwind and rewind diameter 1500mm to fulfill the customers’ requirements of acquiring finished rewinding rolls with big diameter.
Technical Parameters
| Model | SR-1600J | SR-2000J | SR-2400J | SR-2600J | SR-2800J |
| Max. Unwinding Width (mm) | 1600 | 2000 | 2400 | 2600 | 2800 |
| Max. Unwinding Diameter (mm) | Φ1600 | Φ2000 | Φ1800 | Φ1800 | Φ1800 |
| Min. Slitting Width (mm) | 50 | 50 | 50 | 50 | 50 |
| Max. Rewinding Diameter (mm) | Φ1500 | Φ1500 | Φ1500 | Φ1500 | Φ1500 |
| Speed (m/min) | 10–500 | 10–500 | 10–500 | 10–500 | 10–500 |
| Total Power Consumption (kW) | 59 | 70 | |||
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Weight (kg) | 14000 | 16000 | 18000 | 19000 | 20000 |
| Dimension (L×W×H) (mm) | 7500×3800×2400 | 7500×4200×2400 | 8500×4800×2700 | 8500×5000×2700 | 8500×5200×2700 |
