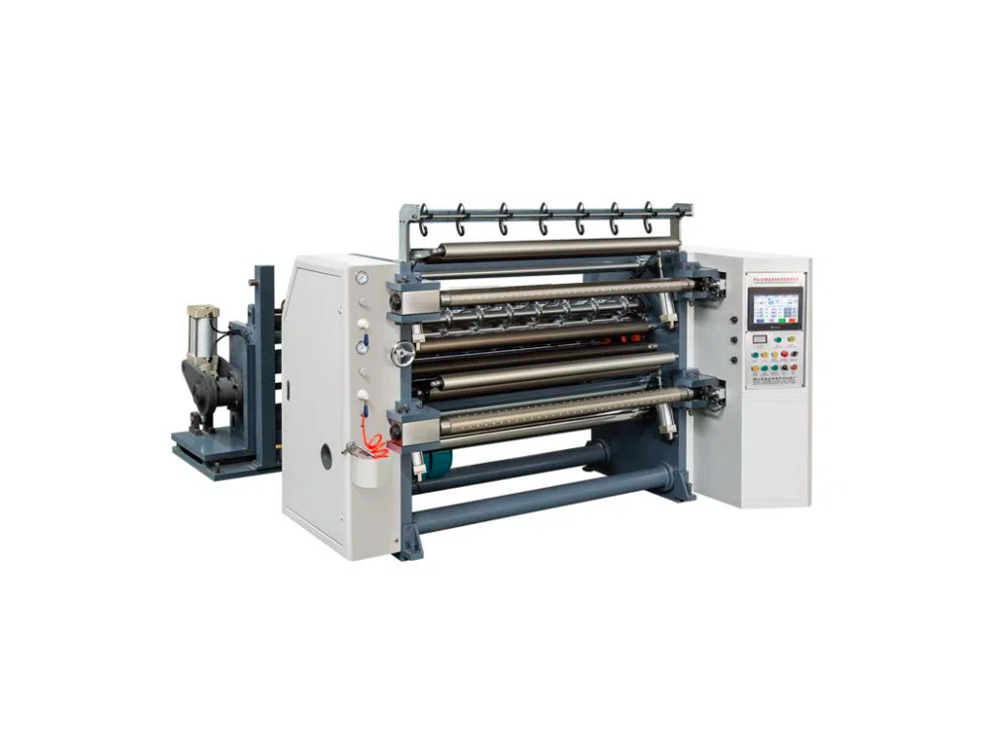

Slitter Rewinder SR-700/1100/1300
It is suitable for slitting and rewinding various roll materials such as BOPP, PET, CPP, CPE, PVC, aluminum foil laminated with film and paper, etc. Can cut edge, separate and cut material according to upon the producing request
Introduction
It is suitable for slitting and rewinding various roll materials such as BOPP, PET, CPP, CPE, PVC, aluminum foil laminated with film and paper, etc. Can cut edge, separate and cut material according to upon the producing request
Features
l Automatic loading system with air expand shaft
l with photoelectric rectifying system
l Frequency speed control motor with stable running, automatic counting, auto metering,alarm stopping and auto magnetic powder tension control
l With PLC control andWeinveiw touching sensitive LCD
l The rewind press roller system adopts combined device of discontinuous movement and air pressure auxiliary control to ensure minimum distance between press roller and material, and also to ensure different materials converting the line of material
l With 10 slitting blades
l With fan blowing device for waste edge
Technical Parameters
|
Model |
SR-700 |
SR-1100 |
SR-1300 |
|
Max. Unwinding Width (mm) |
700 |
1100 |
1300 |
|
Max. Unwinding Diameter (mm) |
Ф1000 |
Ф1000 |
Ф1000 |
|
Max. Rewinding Diameter (mm) |
Ф450 |
Ф450 |
Ф450 |
|
Slitting Width (mm) |
19-700 |
19-1100 |
19-1300 |
|
Slitting Speed (m/min) |
5-200 |
5-200 |
5-200 |
|
Rectification Error (mm) |
<±0.5 |
<±0.5 |
<±0.5 |
|
Power Consumption (kW) |
2.2 |
3 |
3 |
|
Weight (kg) |
1200 |
1500 |
1800 |
|
Dimension (mm) L×W×H |
1850×2500×1300 |
2200×2500×1300 |
2400×2500×1300 |
