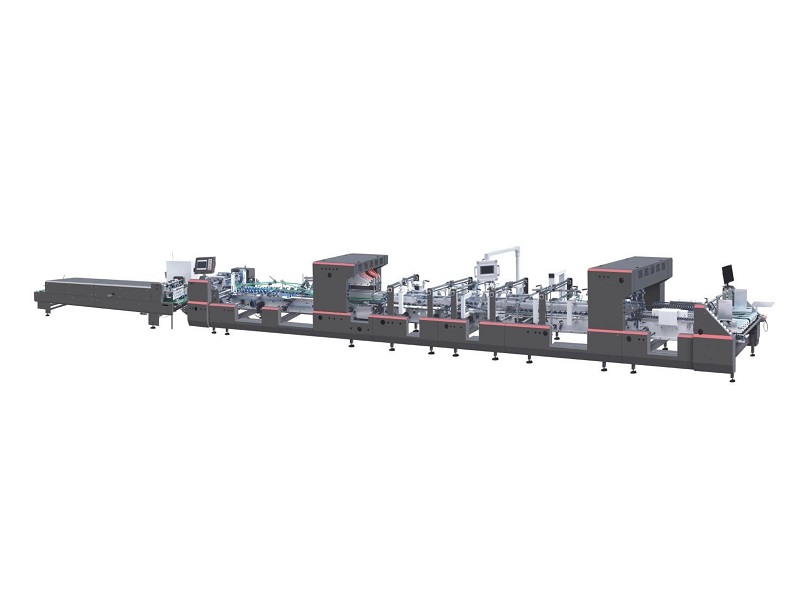

SPRINTFOLD 1250/1450/1650
SPRINTFOLD series especially suitable for small and medium-sized packaging companies, commercial printers and finishers. It´s able to process small and medium sized boxes. Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
SPRINTFOLD 1250/1450/1650-L
suitable for straight-line, crash-lock bottom and double wall boxes
SPRINTFOLD 1250/1450/1650-LS
suitable for straight-line, crash-lock bottom, double wall and 4&6 corner boxes
Introduction
SPRINTFOLD series especially suitable for small and medium-sized packaging companies, commercial printers and finishers. It´s able to process small and medium sized boxes. Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
Technical Parameters
| Model | 1250 | 1450 | 1650 |
| Paper Material |
200-800g/m2 Paperboar N,E,F,EE,B,BE Corrugated |
200-800g/m2 Paperboard N,E,F,EE,B,BE Corrugated |
200-800g/m2 Paperboard N,E,F,EE,B,BE Corrugated |
| Max. Speed | 300m/min | 300m/min | 300m/min |
| Glue Type | Water based cold glue | Water based cold glue | Water based cold glue |
| Power Supply | 380V 3P 50HZ | 380V 3P 50HZ | 380V 3P 50HZ |
| Total Power Consumption | 29kW | 29kW | 29kW |
| Weight | 10000kg | 11000kg | 12000kg |
| Dimension (mm) | 18000×1950×1600 | 18000×2150×1600 | 18000×2350×1600 |
Blank Size
| BLANK SIZE | SPRINTFOLD | 1250 | 1450 | 1650 | |||
| Max | Min | Max | Min | Max | Min | ||
 |
A | 1250 | 100 | 1450 | 100 | 1650 | 100 |
| B | 1000 | 180 | 1000 | 180 | 1000 | 180 | |
| E | 600 | 85 | 715 | 85 | 815 | 85 | |
 |
A | 1050 | 200 | 1400 | 200 | 1600 | 200 |
| B | 1000 | 100 | 1000 | 100 | 1000 | 100 | |
| E | 515 | 90 | 690 | 90 | 790 | 90 | |
 |
A | 1050 | 180 | 1400 | 180 | 1600 | 180 |
| B | 1000 | 140 | 1000 | 140 | 1000 | 140 | |
| H | 150 | 30 | 150 | 30 | 150 | 30 | |
 |
A | 1050 | 180 | 1400 | 180 | 1600 | 180 |
| B | 1000 | 140 | 1000 | 140 | 1000 | 140 | |
| H | 150 | 30 | 150 | 30 | 150 | 30 | |
