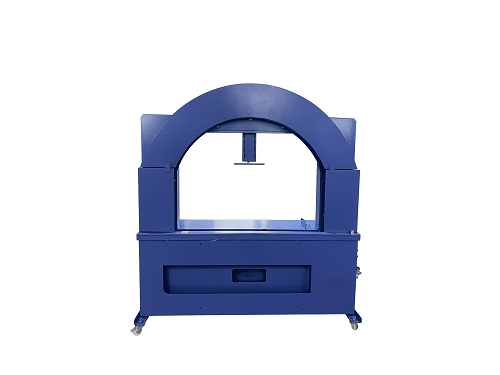

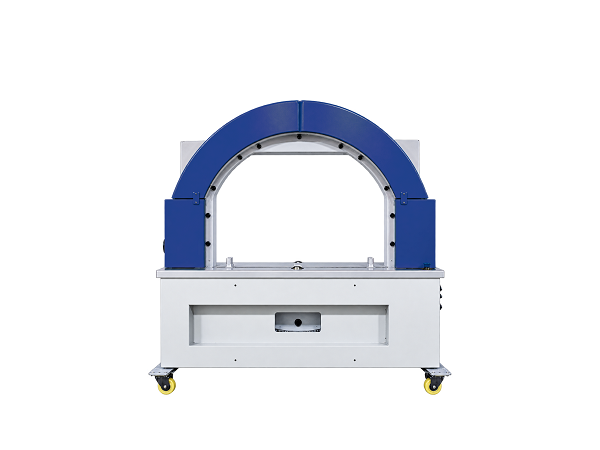

Stretch Film Banding Machine
It is designed to products of varying size and shape so, no matter how unique your products is, you’ll have a secure bundle. It can avoid any product damage often associated with strapping.
Introduction
It is designed to products of varying size and shape so, no matter how unique your products is, you’ll have a secure bundle. It can avoid any product damage often associated with strapping.
Technical Parameters

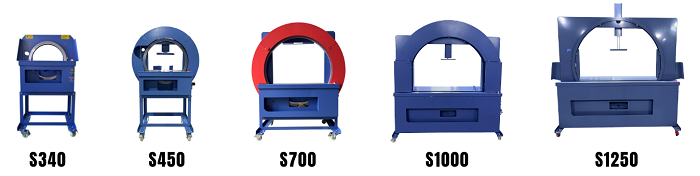

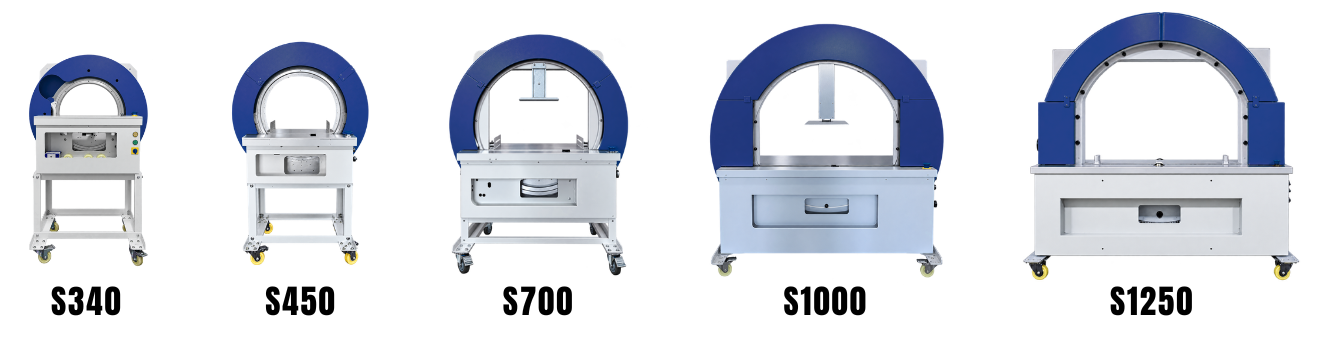

| Model | S340 | S450 | S700 | S1000 | S1250 |
| Inner Frame Size | 340 mm (W) × 190 mm (H) | 450 mm (W) × 330 mm (H) | 700 mm (W) × 560 mm (H) | 1000 mm (W) × 660 mm (H) | 1250 mm (W) × 820 mm (H) |
| Max. Package Size | 340 mm (W) × 60 mm (H) | 450 mm (W) × 250 mm (H) | 700 mm (W) × 450 mm (H) | 1000 mm (W) × 400 mm (H) | 1250 mm (W) × 520 mm (H) |
| Min. Package Size | 100 mm (W) × 20 mm (H) | 100 mm (W) × 20 mm (H) | 100 mm (W) × 20 mm (H) | 100 mm (W) × 20 mm (H) | 100 mm (W) × 20 mm (H) |
| Applicable Tape Width | 20-55mm | 20-55mm | 20-55mm | 20-60mm | 20-60mm |
| Strapping Speed | 1.5 seconds/cycle | 1.5 seconds/cycle | 1.5 seconds/cycle | 1.5 seconds/cycle | 1.5 seconds/cycle |
| Power Consumption | 0.65kW | 0.65kW | 0.65kW | 0.65kW | 0.85kW |
| Power Supply | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Dimension | 600×396×1160mm | 680×450×1330mm | 1070×670×1450mm | 1500×645×1550mm | 2180×618×1880mm |
| Net Weight | 38kg | 45kg | 128kg | 228kg | 300kg |
| Gross Weight | 50kg | 55kg | 155kg | 255kg | 350kg |
