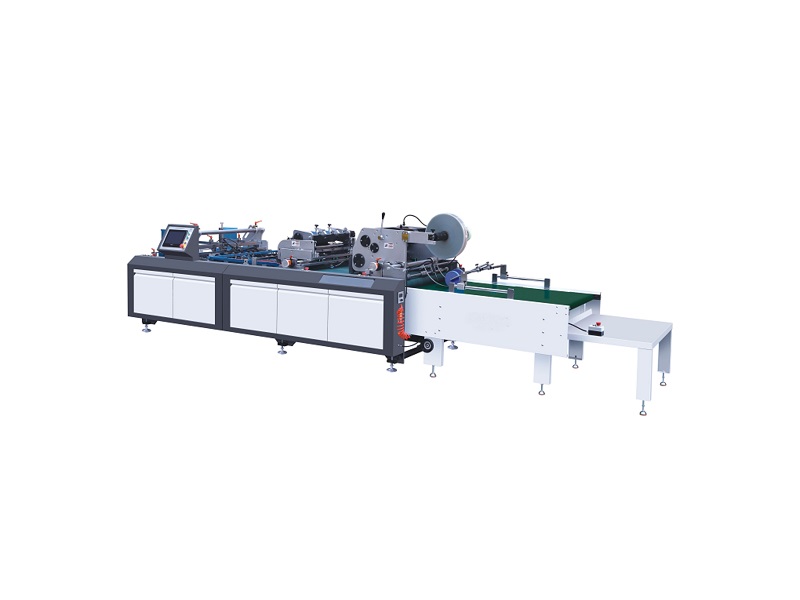

WINDOW PATCHER 860Agile
WINDOW PATCHER 860Agile is widely used in the window patching to the liquor box, gift box, tissue box, cosmetic box, toy box, etc. It can be used for window film cutting, creasing, gluing and patching of card.
Introduction
WINDOW PATCHER 860Agile is widely used in the window patching to the liquor box, gift box, tissue box, cosmetic box, toy box, etc. It can be used for window film cutting, creasing, gluing and patching of card
Technical Parameters
|
Model |
860Agile |
|
Max. Feeding Paper Format |
W860xL720mm |
|
Min. Feeding Paper Format |
W110XL110mm |
|
Paper Range |
Kraft Paper：150-1200g/㎡ White Cardboard：230-1200g/㎡ |
|
Corrugated Paper：≤3mm |
|
|
Max. Film Size |
W460xL460mm |
|
Min. Film Size |
W30xL65mm |
|
Max. Film Unwinding Diameter |
450mm |
|
Film Thickness |
Hob Cutting: CPE/PE:0.05-0.2mmPVC:0.04-0.2mm APET/PET:0.03-0.2mm |
|
Horizontal Cutting: CPE/PE:0.1-0.3mmPVC:0.1-0.3mm APET/PET:0.08-0.3mm |
|
|
Film Precision |
±1mm |
|
Maximum Speed |
Paper L≤330mm：30000pcs/h |
|
Paper L＞330mm：15000pcs/h |
|
|
Quantity of Servo Motor |
8sets |
|
Quantity of Stepping Motor |
2sets |
|
Total Power Consumption |
13kW |
|
Dimension |
L5700xW1700xH1600mm |
|
Weight |
2600kg |

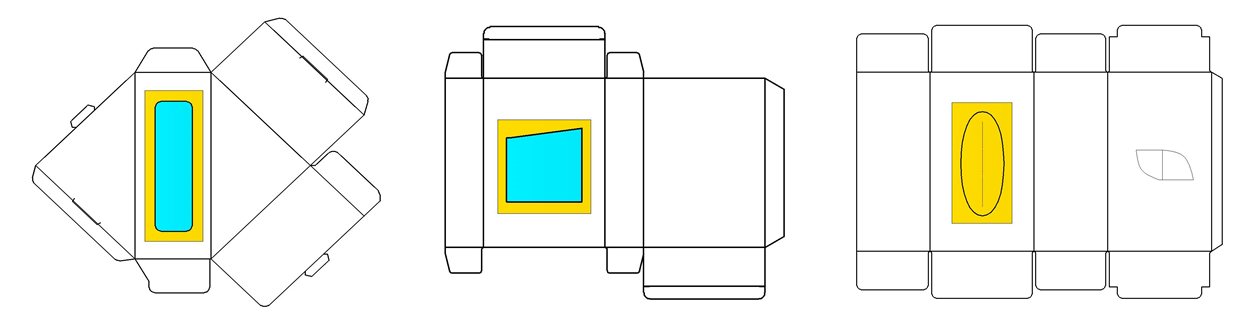

Blank Drawing
