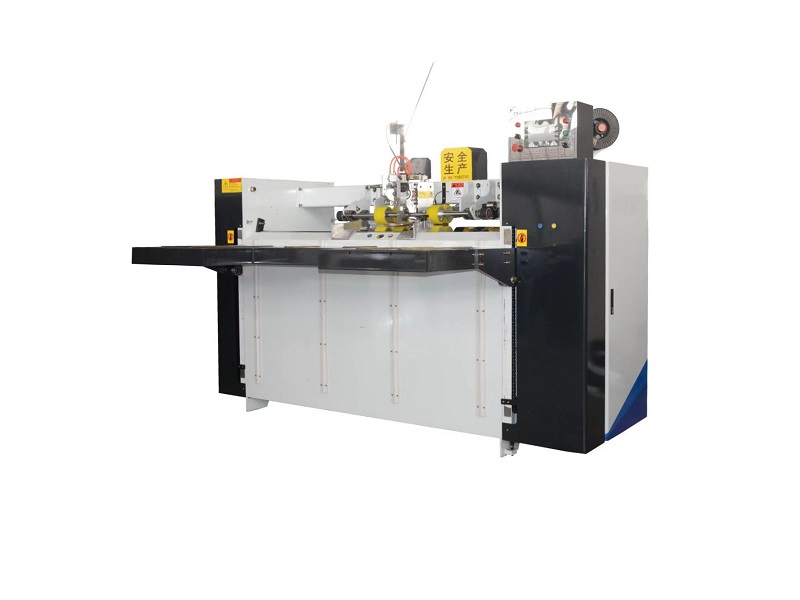

1PCS Stitcher 3800
Two Mitsubishi servo motors and MitsubishI PLC control
Features
Two Mitsubishi servo motorsMitsubishI PLC control
With Shilin AC Contactor, Schneider relay, Omron switch
Bottom die blade made of Japan Tungsten steel
The whole stitching head group made of special steel are processed by CNC
It cost only one minute on changeover job
Can stitch blanks with lid or blanks without lid (If stitching blanks without lid, pls make instruction prior to order )
Can stitch 3 layer, 5layer and 7 layer (If stitching 7 layer, pls make instruction prior to order )
With counter and the photoelectric sensor , it enables the feeding stack lift up automatically
Batch counter function available (The setting range: 2-99)
Can stitch single blank, two same banks and two irregular blanks
Strengthen nail, single nail or double row nail can be made
Technical Parameters
|
Model |
3800 |
|

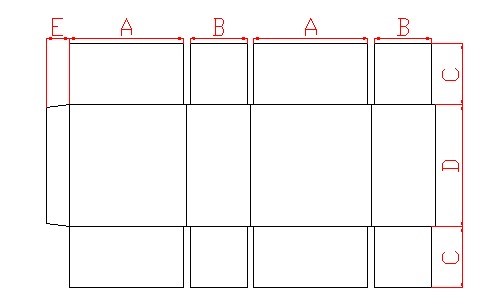

Max (A+B)×2（mm） |
3800 |
|
Min (A+B)×2（mm） |
740 |
|
Max A (mm) |
1140 |
|
Min A (mm) |
250 |
|
Max B (mm) |
760 |
|
Min B (mm) |
120 |
|
Max (C+D+C）（mm） |
2760 |
|
Min (C+D+C）（mm） |
250 |
|
Max C（mm） |
380 |
|
Min C（mm） |
50 |
|
Max D（mm） |
2000 |
|
Min D（mm） |
150 |
|
Max E (mm) |
40 |
|
Machine Width（mm） |
2850 |
|
Max Feeding Height (mm) |
900 |
|
Number of nails |
1-99 |
|
Nail Speed（times/min） |
800 |
|
Weight (t) |
2 |
