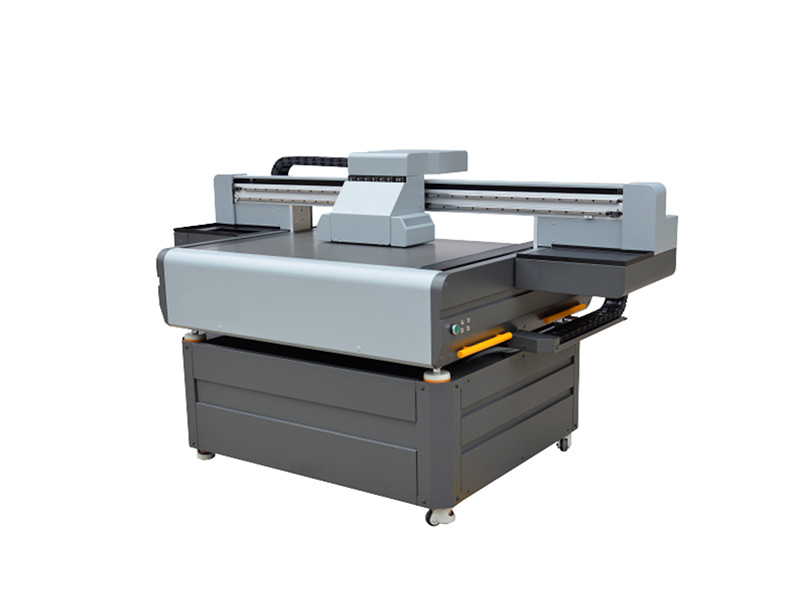

UV FLATBED
It is widely used in a variety of personalized gifts, glass, boards, mobile phone case, acrylic, aluminum, PVC etc. Especially it can print cylindrical gifts
Introduction
It is widely used in a variety of personalized gifts, glass, boards, mobile phone case, acrylic, aluminum, PVC etc. Especially it can print cylindrical gifts
Technical Parameters
|
Model |
UV FLATBED 9060T |
|
Max. Media Size |
1080（L）×960（W）×900（H）mm |
|
Max. Media Weight |
100 kg |
|
Max. Printing Format |
900（L）×600（W）mm |
|
Printing Head No. |
3pcs |
|
Printing Head Type |
Toshiba CE4-M |
|
Ink Box Type |
UV-500ml ink box with stirring feature & White ink box with autocycling feature |
|
Standard Color Configuration |
C+M+Y+K+LC+LM or C+M+Y+K+W |
|
Ink Curing Device |
LED UV water-cooling curing system |
|
Printing Resolution |
600*1800 dpi |
|
Moving Precision |
±0.1mm |
|
Support System |
Win7/win10 32 or 64 bit |
|
Connector |
USB-2.0/3.0 |
|
Power Supply |
AC-220V±10%、10A、50/60Hz |
|
Printing Speed ( Three Printing Head) |
Production Pattern≈6.8㎡/h |
|
Power Consumption |
Peak: around 2500W |
|
Running: 800～1500W |
|
|
Hibernation: around 25W |
|
|
Noise |
Running:55～70dB(A) |
|
Standby :49dB (A) below |
|
|
Machine Dimension |
1960×1050×1100（mm） |
|
Packing Size |
2200×1250×1300（mm） |
|
Weight |
200 kg |
|
Working Environment |
Temperature：10～35℃Humidity：35～80%RH |
Finished Product
