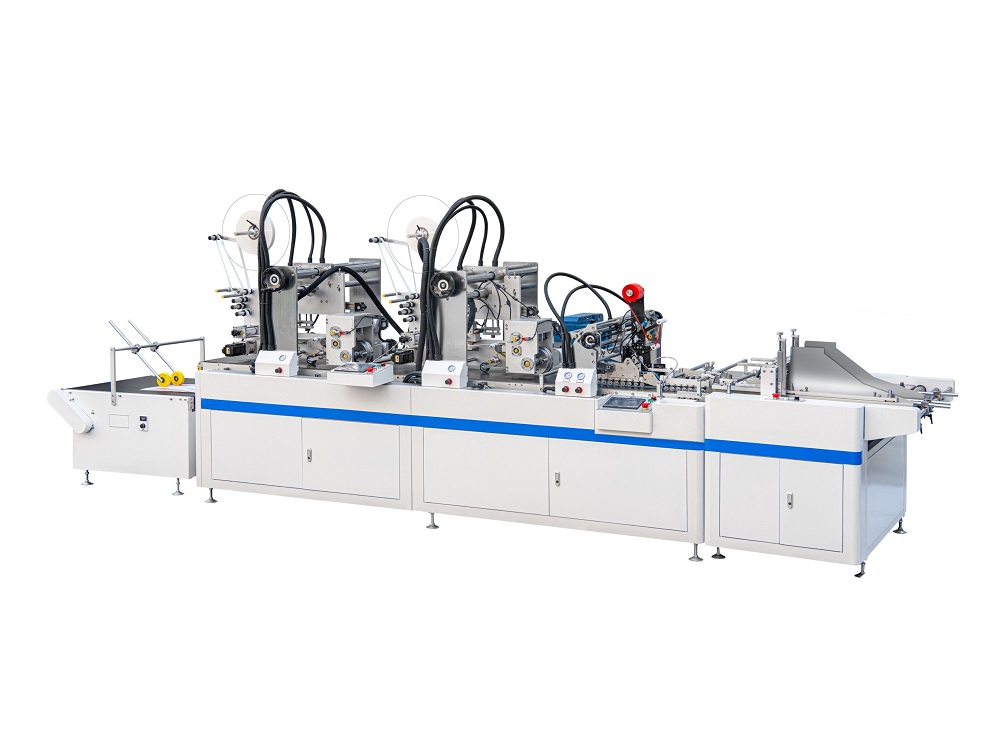

Automatic Release Paper Applicator
It is designed to apply several types of release paper and tear strips in a full automatic way. The release paper are applied to common material types such as paper, card and corrugated board. Automatic release paper applicator are favoured over manual hand application of release paper for their increased speed and productivity in manufacturing processes.
Introduction
It is designed to apply several types of release paper and tear strips in a full automatic way. The release paper are applied to common material types such as paper, card and corrugated board. Automatic release paper applicator are favoured over manual hand application of release paper for their increased speed and productivity in manufacturing processes.
Features
With friction feeder
Two hot melt glue spreading stations
Tear tape applicator is optional
With SICK sensor and servo control
Glue coated on the release paper. The release paper is transferred into the product by wind wheel
PLC control and HMI
Technical Parameters
|
Model |
900RA |
|
Max. Feeding Paper Format |
900×860mm |
|
Min. Feeding Paper Format |
200×200mm |
|
Glue Width |
8-40mm |
|
Glue Length |
≥100mm |
|
Speed |
40-90m/min |
|
Accuracy |
±1mm |
|
Power Consumption |
10kW 380V |
|
Dimension (L×W×H) |
5920×1370×1965mm |
|
Weight |
1200kg |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

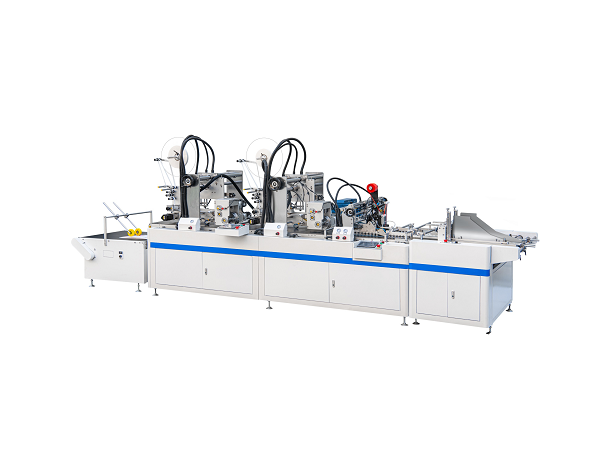

Automatic Release Paper Applicator
