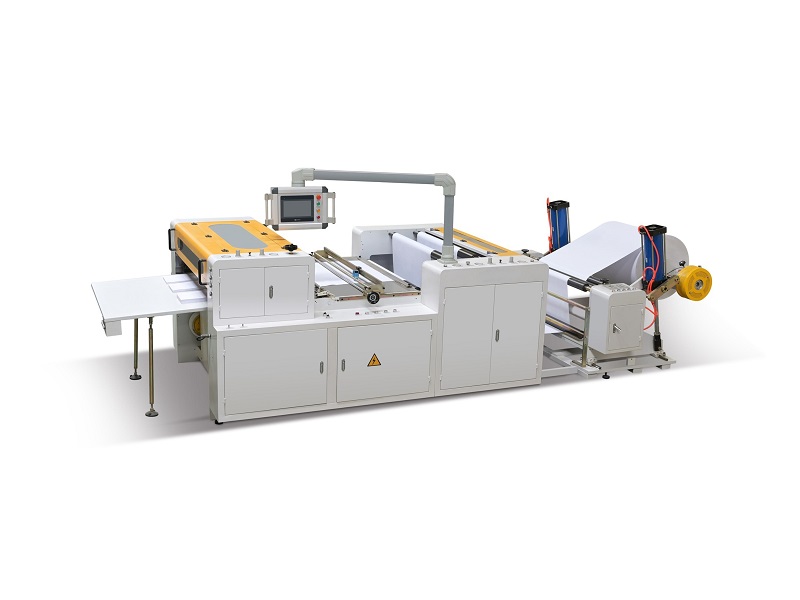

Cut-size sheeter machine SM-1100/1400

Introduction

The machine is suitable for converting jumbo roll to sheets. It can cut cardboard paper, craft paper, coated paper, plastic film, printed material, adhesive material, PVC, PET, etc.

Features
Automatic loading system with air expand shaft with photoelectric rectifying system.
Frequency speed control motor with stable running, automatic counting, auto metering,alarm stopping and auto magnetic powder tension control.
With Mitsubishi PLC control and Weinveiw touching sensitive LCD.
Witstrong6mm thickness steel frame, the casting knife holder and aluminum alloy guide roller with static balance treatment.
Yaskawa brand servo control constant-length cutting(precision:±0.2mm).
With electrostatic eliminator.
With 6 slitting blades.
With color tracking sensor for materials with printing image.
With fan blowing device for waste edge.

Technical Parameters
