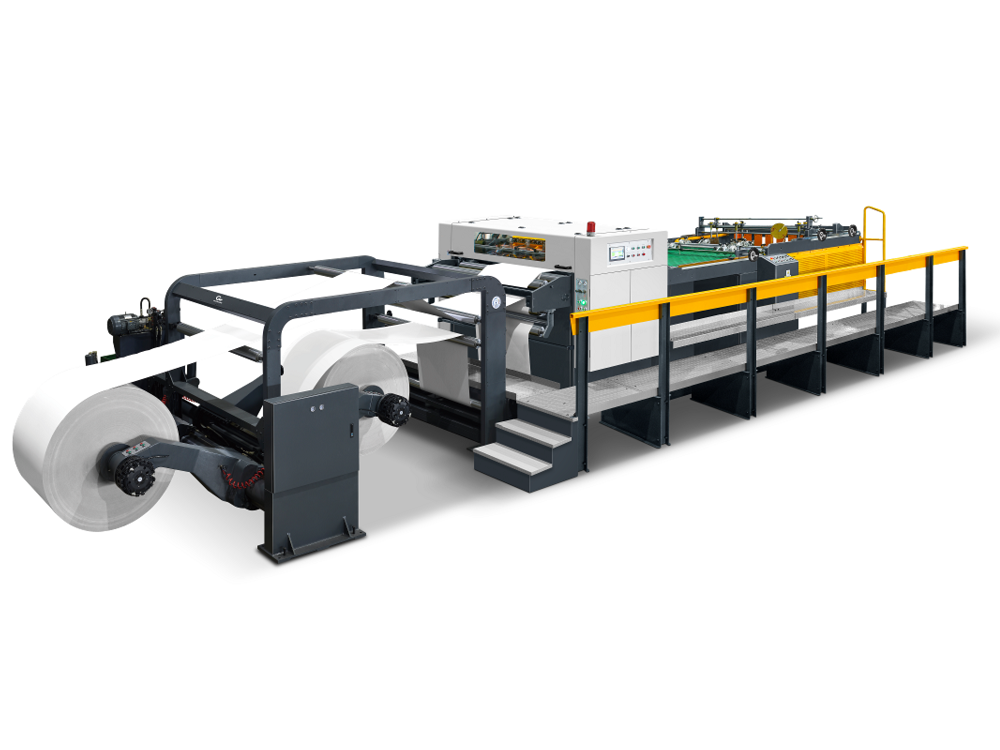

Rotary Sheeter RSM-1400/1700
The machine is suitable for converting jumbo roll to sheets. It can cut paperboard, coated paper, craft paper, culture paper, offset paper, glossy photo paper, gold and silver cardboard, aluminum foil, laser paper, wrapping paper, etc.
Introduction
The machineissuitableforconverting jumbo roll to sheets. It can cut paperboard, coated paper, craft paper, culture paper, offset paper, glossy photo paper, gold and silver cardboard, aluminum foil, laser paper, wrapping paper, etc.
Technical Parameters
|
Model |
RSM-1400 |
RSM-1700 |
|
Max. Cutting Speed |
350 cuts/min |
350 cuts/min |
|
Max. Feeding Speed |
300 m/min |
300 m/min |
|
Cutting Precision |
±0.3mm |
±0.3mm |
|
Cutting Method |
The up knife cut reciprocally and the down knife is fixed |
The up knife cut reciprocally and the down knife is fixed |
|
Cutting Length Range |
450~1650mm |
450~1650mm |
|
Paper Range |
60-550gsm |
60-550gsm |
|
Max. Pile Height |
1500mm |
1500mm |
|
Max. Unwinding Diameter |
1800mm |
1800mm |
|
Max. Cutting Width |
1400mm |
1700mm |
|
Air Source |
0.8Mpa |
0.8Mpa |
|
Main MotorPower Consumption |
11kW |
11kW |
|
Power Supply |
AC380V×50HZ/60HZ |
AC380V×50HZ/60HZ |
|
Gross Weight |
12t |
13t |
