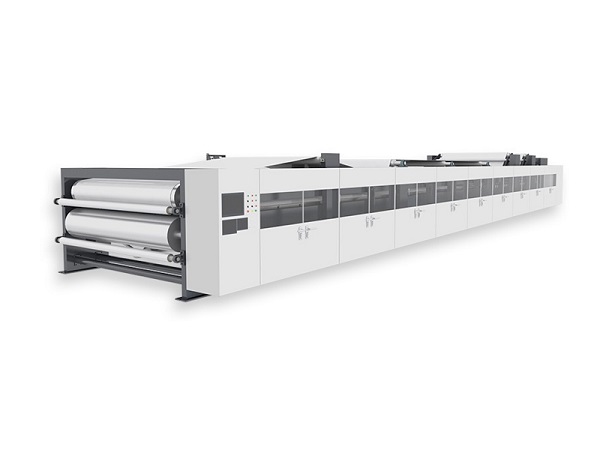

Double Facer

Design Speed: 100-300m/min

Effective Width: 1400-2800mm

The hot plate parts is heated by steam. The temperature of different sections is controlled by temperature control valve based on the layers of corrugated board and machine running speed

Hydraulic lifting. Pressurization may be performed by sections based on the layers of produced corrugated board; maintaining appropriate pressure is favorable to molding of paper board. Pneumatic tensioning for top belt, full-automatic imported airbag is adapted for felt guide of the top and bottom belt, so as to keep the complete machine at normal running status.

Pressure mode: two options for customer’s choices; pressure roll or shoe plates; the system will automatically control the quality of shoe plates in use based on the present speed.

Driven by inverter motor.
