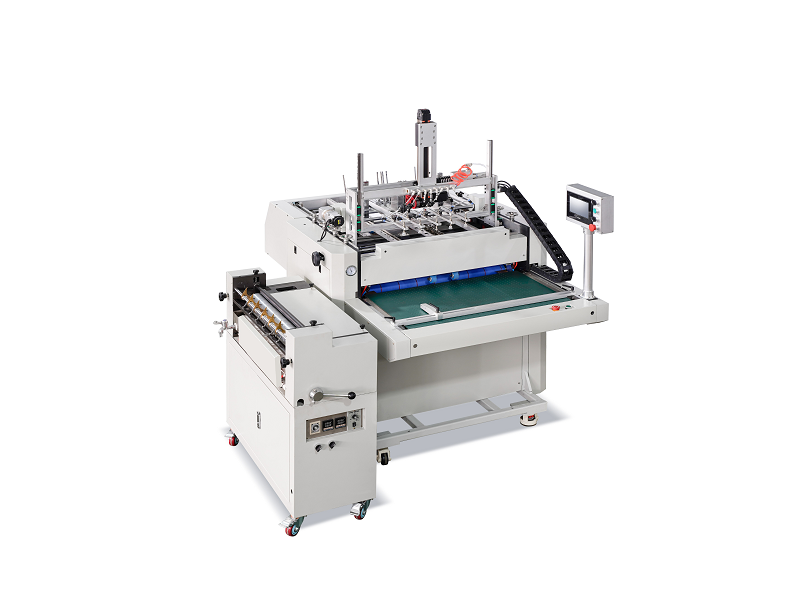

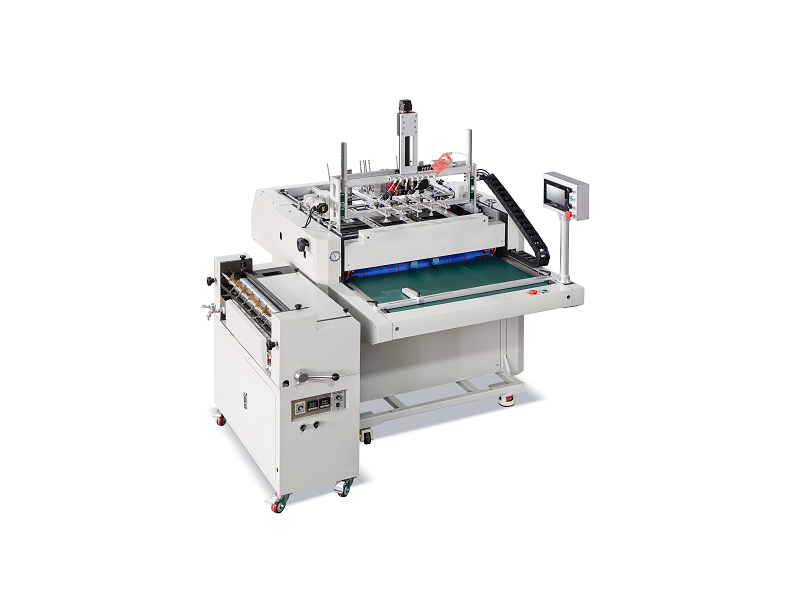

Four Side Folding Case Maker
This machine is mainly applied in covering and pressing various notebooks, photo books (photo album), folders, certificates, hardcover books. This process is finished easily fold four sides at the same time by one operator. It is the good partner of post-press, especially the digital post-press.
Introduction
This
machine is mainly applied in covering and pressing various notebooks, photo
books (photo album), folders, certificates, hardcover books. This process is
finished easily fold four sides at the same time by one operator. It is the
good partner of post-press, especially the digital post-press
Features
Auto in delivering and positioning the cardboard;
Adopting touch screen operating system
Use hot glue (animal glue / Jelly glue)
Easy and quick in adjusting the size of cardboard with hand wheel system, instead of tools
Quick in adjusting the thickness
With high precision gluing roller, the paper is evenly glued and well folded ;
Light Tube inside the working table makes the position more accurate.
Advanced folding system without the glue sticking problem
Technical Parameters
|
Model |
720F |
|
Power Supply |
AC-220V±10% 50/60Hz |
|
Mainframe Power |
6kW |
|
Work Speed |
1-7pcs/minute |
|
Paperboard Thickness |
1-4mm |
|
Hard Case Spine Width(Min) |
9mm |
|
Open Book Case Size(Max) |
720x360mm |
|
Open Book Case Size(Min) |
160x160mm |
|
Machine Dimensions(L×W×H) |
1800×1300×1800mm |
|
Paper Thickness |
105-200g |
|
Machine Weight |
550kg |

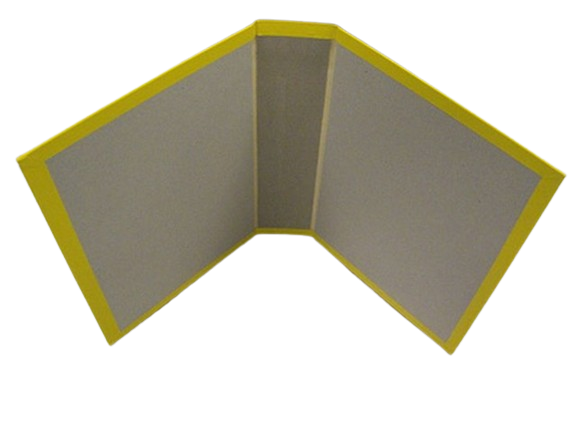

Finished Product
