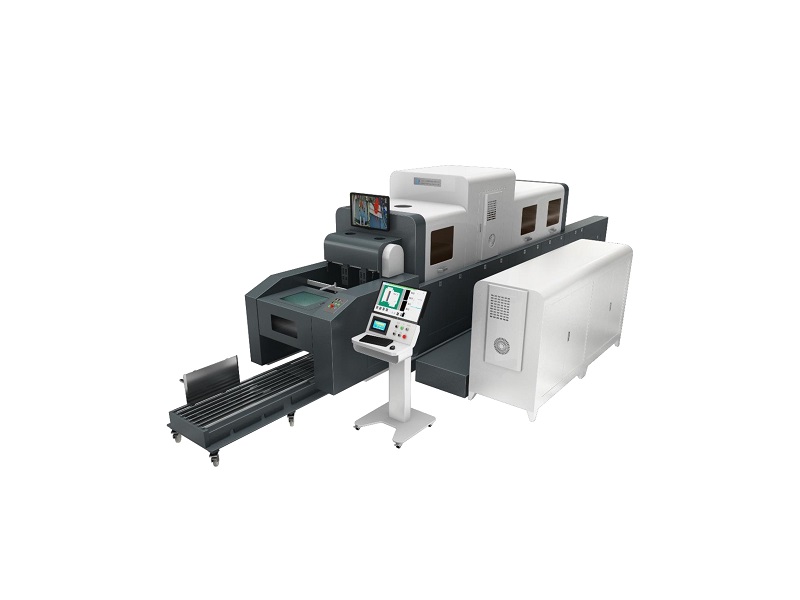

Inspection Machine
High-grade printing quality control mainly for pharmaceutical packaging, cigarette packaging, labels and other folding cartons and corrugated boxes
Introduction
High-grade printing quality control mainly for pharmaceutical packaging, cigarette packaging, labels and other folding cartons and corrugated boxes
Technical Parameters
For cardboard
| Model | 550C | 650C | 800C | 1100C |
| Max. Detectable Size (L×W) | 550 mm×400 mm | 650 mm×500 mm | 800 mm×500 mm | 1100 mm×500 mm |
| Min. Detectable Size (L×W) | 90mm×90 mm | 100mm×100 mm | 150 mm×120 mm | 150 mm×120 mm |
| Paper Range | Cardboard: 90 to 500 g/m² | |||
| Total Power Consumption | 15.5kW | 16.5 kW | 18.5 kW | 30 kW |
| Gross Weight | 3700kg | 4000 kg | 4100 kg | 5300 kg |
| Max. Transfer Speed | 300m/min | 300m/min | 240m/min | 240m/min |
| Max. Detectable Speed for Cardboard | 130000 pcs/hour | 100000 pcs/hour | 80000 pcs/hour | 80000 pcs/hour |
| Dimensions (L×W×H) | 6500 mm×1160 mm×1880 mm | 6500 mm×1380 mm×1880 mm | 6500 mm×1380 mm×1880 mm | 6500 mm×1710 mm×1930 mm |
For cardboard and corrugated
| Model | 650C/C | 800C/C | 1100C/C |
| Max. Detectable Size (L×W) | 650 mm×500 mm | 800 mm×500 mm | 1100 mm×800 mm |
| Min. Detectable Size (L×W) | 250mm×250 mm | 250 mm×250 mm | 250 mm×250 mm |
| Paper Range | Cardboard: 200 to 500 g/m² Corrugated: B,E,F,G | ||
| Total Power Consumption | 25 kW | 25 kW | 25 kW |
| Gross Weight | 6500 kg | 6500 kg | 6500 kg |
| Max. Transfer Speed | 230m/min | 230m/min | 230m/min |
| Max. Detectable Speed for Corrugated | 20000 pcs/hour | 20000 pcs/hour | 20000 pcs/hour |
| Dimensions (L×W×H) | 10600 mm×2830 mm×1880 mm | 10600 mm×2830 mm×1880 mm | 11800 mm×3160 mm×1880 mm |
