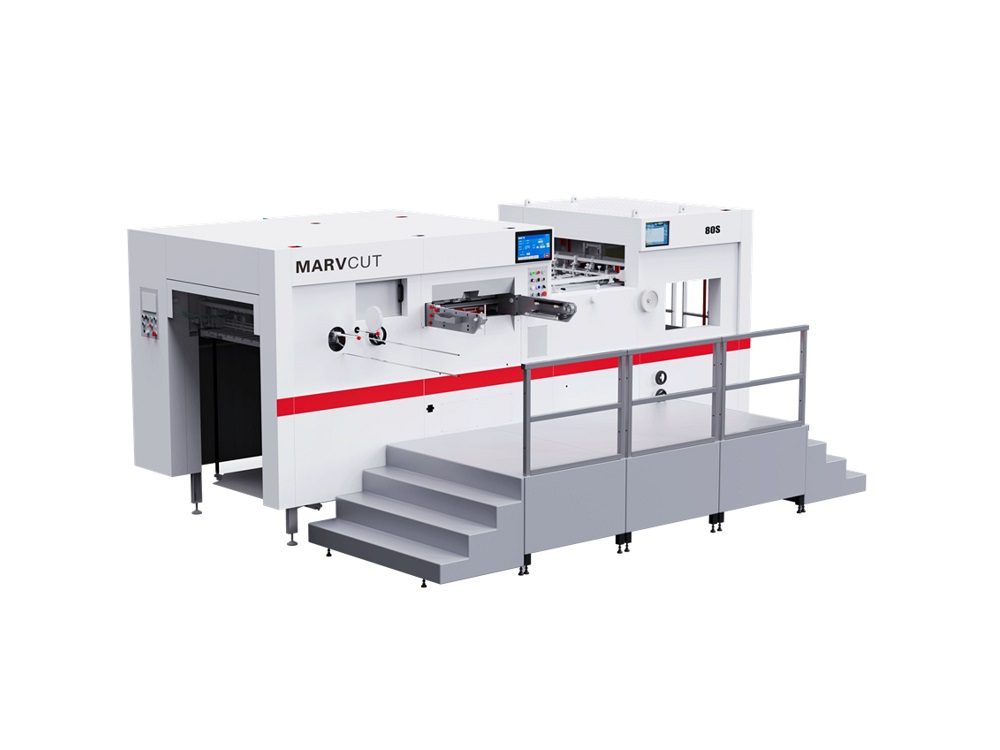

MARVCUT 80S
This machine is mainly used for the die-cutting and creasing of carton box or label in packaging industry.
Introduction
This machine is mainly used for the die-cutting and creasing of carton box or label in packaging industry.
From paper feeding to paper delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Technical Parameters
Model
MARVCUT 80S
Max. Feeding Paper Format
800×620mm
Min. Feeding Paper Format
360×290mm
Max. Die cutting Format
790×610mm
Max. Working Pressure
200t
Paper Range
Corrugated ≤2mm(max)
Cardboard ≥80g
Die Cutting Precision
±0.1mm
Max. Speed
7500 sheets/hour
Max. Feeding Pile Height
1400mm
Max. Delivery Pile Height
1030mm
Main Motor Power Consumption
7.5kW
Total Power Consumption
13kW
Total Weight
11.3t
Dimension (L×W×H)
4600×3400×1800mm
