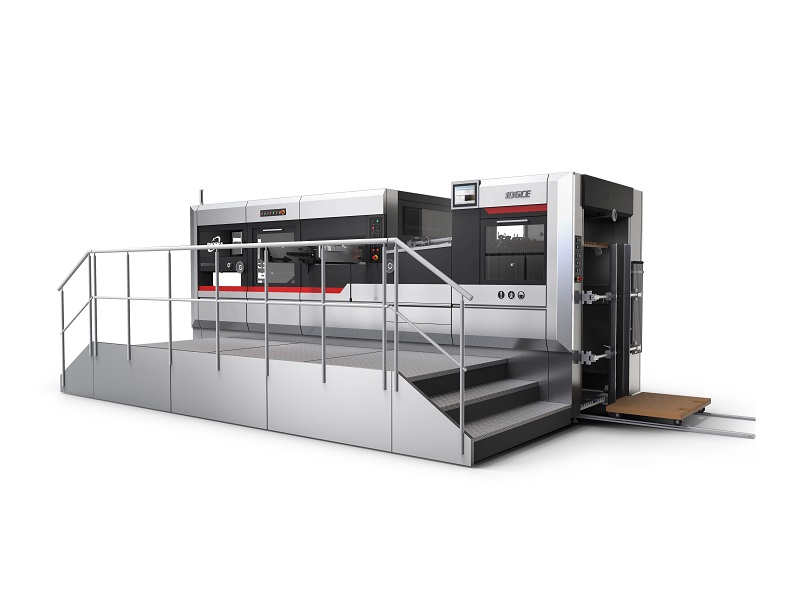

MAVINCUT 106CE
This machine is mainly used for the die-cutting, creasing and cold embossing of carton box or label in packaging industry.
From paper feeding to paper delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine.
Introduction
This machine is mainly used for the die-cutting, creasing and cold embossing of carton box or label in packaging industry.
From paper feeding to paper delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Technical Parameters
|
Model |
MAVINCUT 106CE |
|
Max. Feeding Paper Format |
1060×750mm |
|
Min. Feeding Paper Format |
400×360mm |
|
Max. Die cutting Format |
1040×720mm |
|
Inner Chase Size |
1080×745mm |
|
Die Cutting Plate Size |
1080×736mm |
|
Max. Working Pressure |
300t |
|
Min. Waste Width |
8mm |
|
Paper Range |
Corrugated ≤4mm(max) |
|
Cardboard 80g-1800g |
|
|
Die cutting Precision |
±0.1mm |
|
Max. Speed |
7500 sheets/hour |
|
Max. Feeding Pile Height |
1500mm |
|
Max. Delivery Pile Height |
1400mm |
|
Main Motor Power Consumption |
11kW |
|
Total Power Consumption |
20kW |
|
Total Weight |
15.5t |
|
Dimension (L×W×H) |
7016×4049×2030mm |
