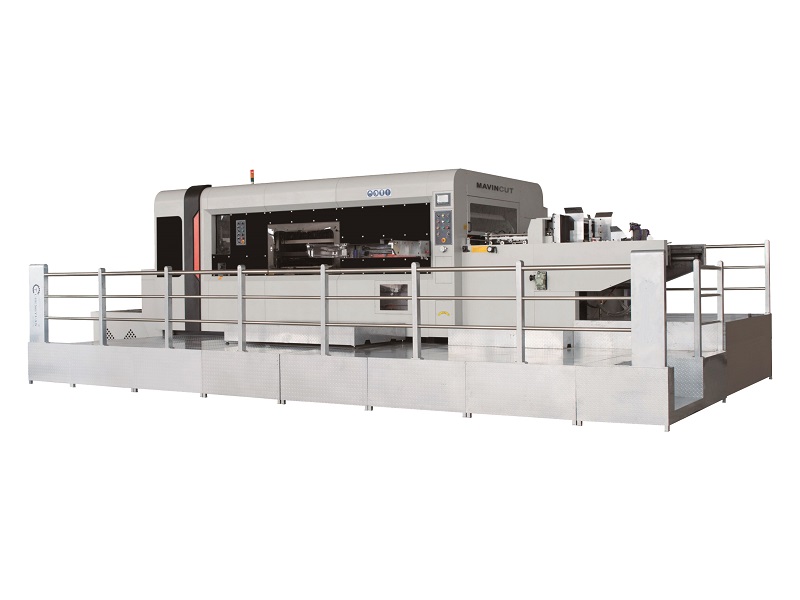

MAVINCUT 150/170
This machine is mainly used for die cut the corrugated board. From feeding to delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Introduction
This machine is mainly used for die cut the corrugated board. From feeding to delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Technical Parameters
| Model | MAVINCUT 150 | MAVINCUT 170 |
| Max. Feeding Paper Format | 1520×1100mm | 1700×1200mm |
| Min. Feeding Paper Format | 500×500mm | 600×500mm |
| Max. Die cutting Format | 1500×1080mm | 1680×1180mm |
| Max. Working Pressure | 300N/cm2 | 300N/cm2 |
| Paper Range | Corrugate：1-8.5mm | Corrugated：1-8.5mm |
| Cardboard ≥250g | Cardboard ≥250g | |
| Die cutting Precision | ±0.15 mm | ±0.15 mm |
| Max. Speed | 6000 sheets/hour | 6000 sheets/hour |
| Total Power Consumption | 35kW | 38.5kW |
| Total Weight | 25t | 29t |
| Dimension (L×W×H) | 11500×5168×2654mm | 11800×5772×2814mm |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

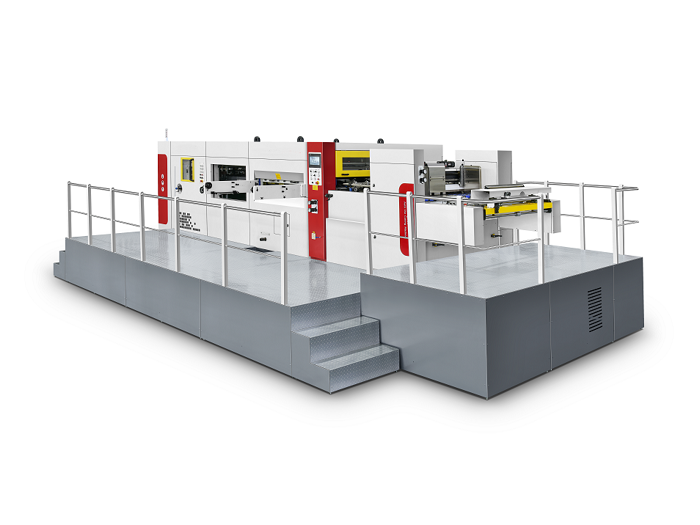

MAVINFOIL 106CF
