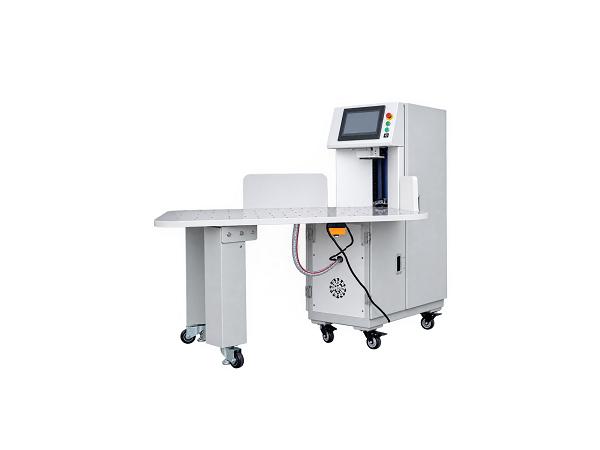

Paper Counter
This machine can automatically complete paper counting and paper insertion. It is applicable to 30-240g carbon paper, offset printing paper, coated paper, etc. Different kinds of paper can be mixed counting simultaneously.
Introduction
This machine can automatically complete paper counting and paper insertion. It is applicable to 30-240g carbon paper, offset printing paper, coated paper, etc. Different kinds of paper can be mixed counting simultaneously.
Technical Parameters
|
Model |
PC-1200A30 |
|
Counting Speed |
0–2100 pcs/minute |
|
Paper Range |
30g/m²–240g/m² |
|
Paper Size (mm) |
Max: 788 (L) ×1200 (W) Min: 100 (L) × 150 (W) |
|
Working Table Size |
900 (L) × 1200 (W) |
|
Label Size |
Width:5mm Length:210m |
|
Label Insert |
Every 2 to 1000 sheets |
|
Max. Stacking Height (mm) |
300 |
|
Working Table Height (mm) |
740 |
|
Power Supply |
AC100V–240VAC, 50/60Hz single phase |
|
Total Power Consumption |
0.7kW |
|
Machine size (L×W×H) (mm) |
1770 × 1000 × 1460 |
|
Machine Weight (kg) |
160 |
