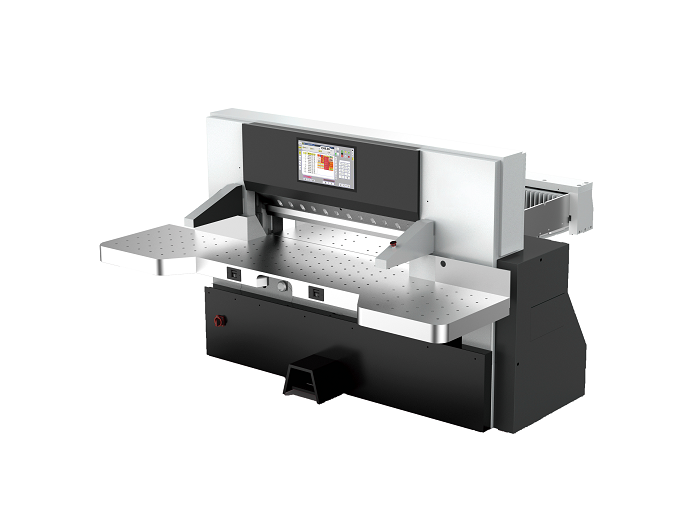

Pro Cutter
High cutting accuracy up to the last sheet at high speed
Wide operating possibilities with flexible program
Processing various materials, as e.g. paper, cardboard, offset printing plates or similar cutting stock
Introduction
High quality casting part made by resin bonded sand way
Chrome-plated slot-less working table installed with double imported linear guide and air cushion
With ball lead screw
Mechanical assistance device for knife replacement
Overload protection safety device
Infrared photoelectric protection device
Knife cutting only operated by pressing two buttons at same time
Fluorescent lamp and cutting line indicator
Ejective device for knife bar
Use imported components in Hydraulic system
Use imported electronic units
Siemens PLC control
Driven by Servo motor, the maximum speed of the back gauge is 30 m/min
Use imported Mechanic components like NSK Bearing
Adjust hydraulic pressure manually and the paper can be pressed twice by pressure-increased system
Technical Parameters
| Model | Unit | 92Pro | 115Pro | 137Pro |
| Max.Cutting Width | cm | 92 | 115 | 137 |
| inch | 36.2 | 45.3 | 53.9 | |
| Max.Cutting Length | cm | 92 | 115 | 145 |
| inch | 36.2 | 45.3 | 57.1 | |
| Max. Cutting Height | cm | 13 | 16.5 | 16.5 |
| inch | 5.1 | 6.5 | 6.5 | |
|
Min. Cutting Size (without false clam plate) |
cm | 2.5 | 3 | 3 |
| inch | 1 | 1.2 | 1.2 | |
|
Min. Cutting Size (with false clamp plate) |
cm | 9 | 9 | 9 |
| inch | 3.5 | 3.5 | 3.5 | |
| Front Table Length | cm | 63.2 | 72 | 73 |
| inch | 24.9 | 28.3 | 28.7 | |
| Max.Clamp Pressure | N | 35000 | 40000 | 45000 |
| Max. Cutting Speed | time/min | 45 | 46 | 46 |
| Main Motor Power Consumption | kw | 3 | 4 | 4 |
| Total Power Consumption | kw | 4.3 | 5.6 | 5.6 |
| Net Weight | kg | 2300 | 3650 | 3900 |
| Gross Weight | kg | 2500 | 4050 | 4300 |
| Packing Size(L×W×H) | cm | 228×140×188 | 285×175×202 | 300×175×202 |
