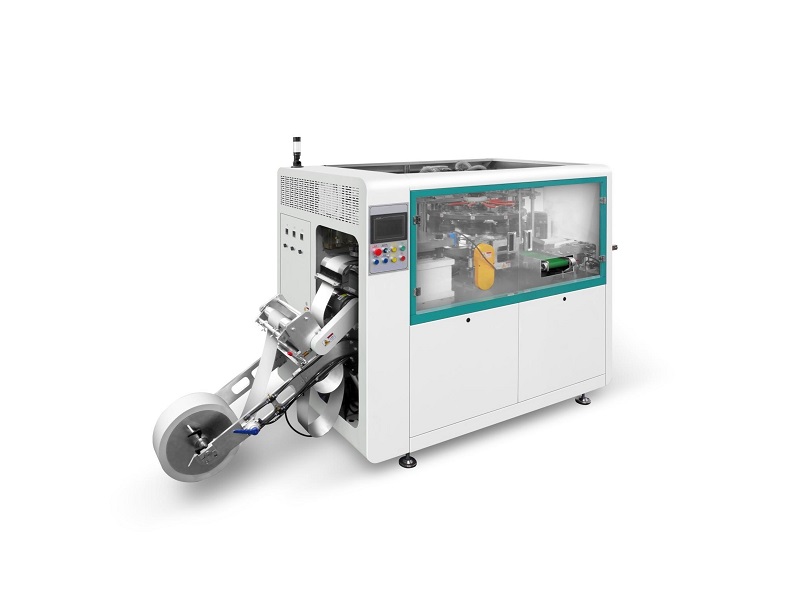

Paper Cup Lid Forming Machine
Paper Cup Lid Forming Machine is to make paper cup lid automatically. Automatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss, logo), cross cut (make hole for straw), punching (punch the roll paper to lid open disc), auto feed disc to mold, heating, folding, knurling, and discharge, With convey and counter for collection.
Introduction
CLF-118/160 Paper Cup Lid Forming Machine is to make paper cup lid automatically. Automatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss, logo), cross cut (make hole for straw), punching (punch the roll paper to lid open disc), auto feed disc to mold, heating, folding, knurling, and discharge, With convey and counter for collection.
Features
Patent equipment, high speed.
Feed roll paper,
Auto creasing (guide line),
Auto emboss (logo and shape on lid top, also make cross cut),
Auto punching (cut roll paper to lid disc),
Lid made by one paper disc, save cost.
PLC control + servo motor feed paper
Open cam + shaft + cam + gear control movement, stable and reliable.
Technical Parameters
|
Model |
CLF-118 |
CLF-160 |
|
Paper Range |
250-450gsm One & Two side PE coated paper, glossy coated paper. |
250-450gsm One & Two side PE coated paper, glossy coated paper. |
|
Lid Size |
Diameter 65~118 mm |
Diameter 100~160 mm |
|
Lid Height |
8-15mm |
8-15mm |
|
Speed |
70~100 pcs/minute |
45~80 pcs/minute |
|
Power Supply |
AC380V 3-phase, 50Hz |
AC380V 3-phase, 50Hz |
|
Air requirement |
Consumption 0.3cubic meter/minute, Pressure:0.4MPa |
Consumption 0.3cubic meter/minute, Pressure:0.4MPa |
|
Power Consumption |
7.5kW |
12kW |
|
Overall Dimension Lx Wx H |
3000mm x 1250mm x 1850 mm |
3250mm x 1250mm x 1850 mm |
|
Weight |
2.6t |
2.8t |

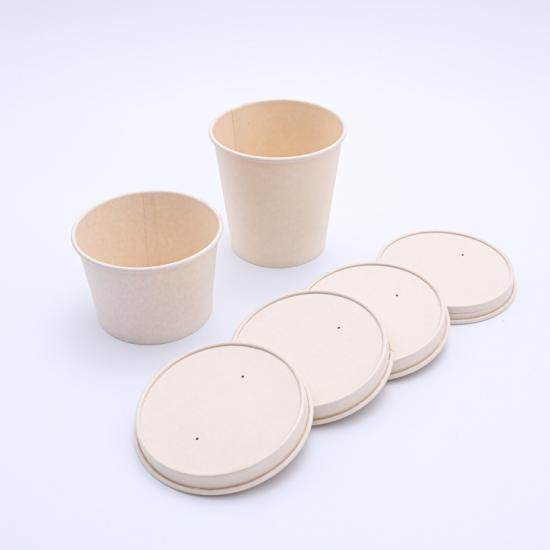

Finished Product
