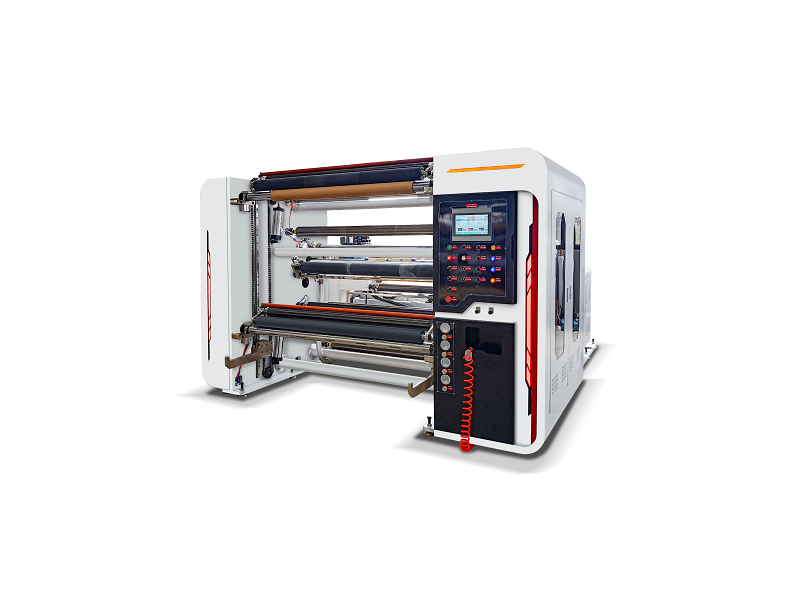

Slitter Rewinder A series
It is suitable for slitting and rewinding large wide jumbo rolls, like various papers, adhesive label, or some laminates into narrow-width rolls. We specially designed it with a large unwind and rewind diameter 1000mm/1200mm to fulfill the customers’ requirements of acquiring finished rewinding rolls with big diameter.
Introduction
It is suitable for slitting and rewinding large wide jumbo rolls, like various papers, adhesive label, or some laminates into narrow-width rolls. We specially designed it with a large unwind and rewind diameter 1000mm/1200mm to fulfill the customers’ requirements of acquiring finished rewinding rolls with big diameter.
Technical Parameters
| Model | SR-1100A | SR-1300A | SR-1600A |
| Max. Unwinding Width (mm) | 1100 | 1300 | 1600 |
| Max. Unwinding Diameter (mm) | Φ1400/1600 | Φ1400/1600 | Φ1400/1600 |
| Min. Slitting Width (mm) | 50 | 50 | 50 |
| Max. Rewinding Diameter (mm) | Φ1000/1200 | Φ1000/1200 | Φ1000/1200 |
| Speed (m/min) | 10–450 | 10–450 | 10–450 |
| Total Power Consumption (kW) | 22 | 22 | 24 |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Weight (kg) | 5600 | 6000 | 6400 |
| Dimension (L×W×H) (mm) | 4200×3200×1950 | 4200×3400×1950 | 4200×3700×1950 |
