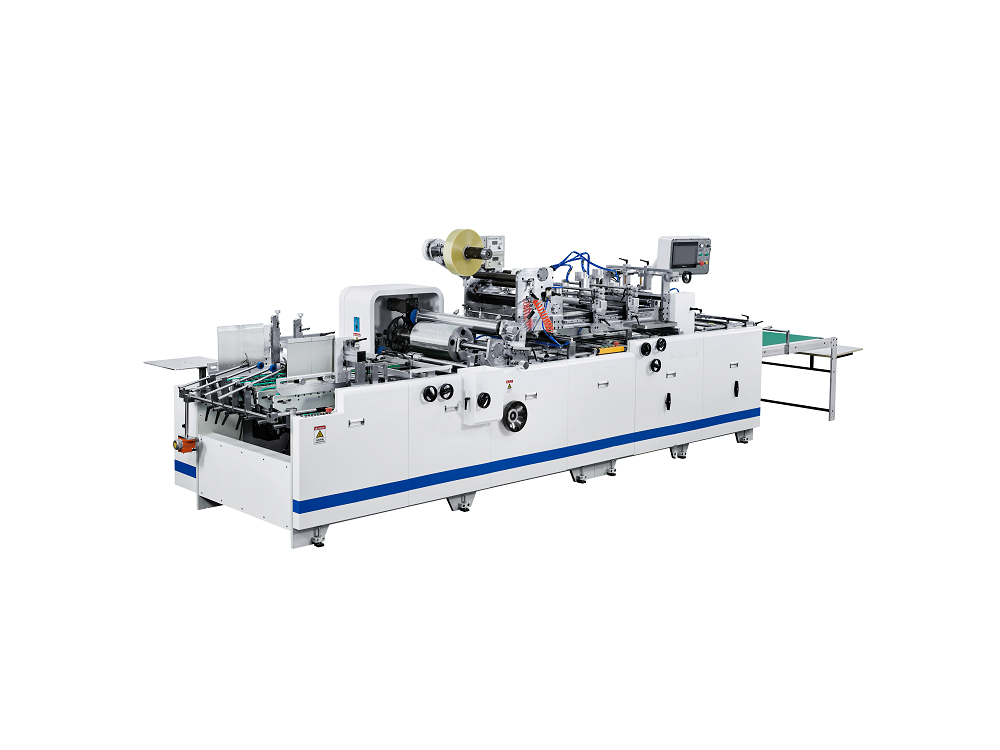

WINDOW PATCHER Deluxe
WINDOW PATCHER Deluxe own the function of simple patching and film patching with creasing. It can realize the double creasing, double cutting, circular angle, round hole, environmental protection loop mark on PVC, PET, PP, OPP film with the thickness of 0.08-0.3mm.
Technical Parameters
| Model | 750Deluxe | 1050Deluxe |
| Paper Format | W730×L600mm-150×150mm | W1030×L750mm-150×180mm |
| Window Format | W350×L300mm-50×50mm | W500×L300mm-50×80mm |
| Paper Range | Cardboard:200～2000g/㎡ | Cardboard:200～2000g/㎡ |
| Corrugated board:1-6mm | Corrugated board:1-6mm | |
| Film Thickness | 0.1～0.3mm | 0.1～0.3mm |
| Positioning Accuracy | Top/bottom±0.5mm | Top/bottom±0.5mm |
| Left/right±0.1mm | Left/right±0.1mm | |
| Max.Working Speed | 7000 sheets/hour | 7000 sheets/hour |
| Power Supply | 380V/50HZ three phase | 380V/50HZ three phase |
| Power Consumption | 8.5kW | 12kW |
| Weight | 3000kg | 4200kg |
| Overall Dimension | L6800×W1400×H1600mm | L7800×W1700×H1600mm |

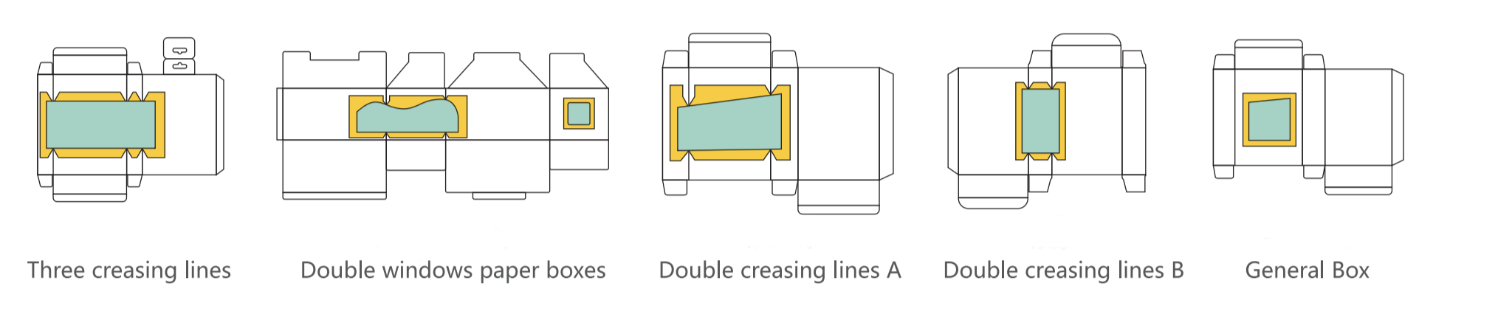

Blank Drawing
