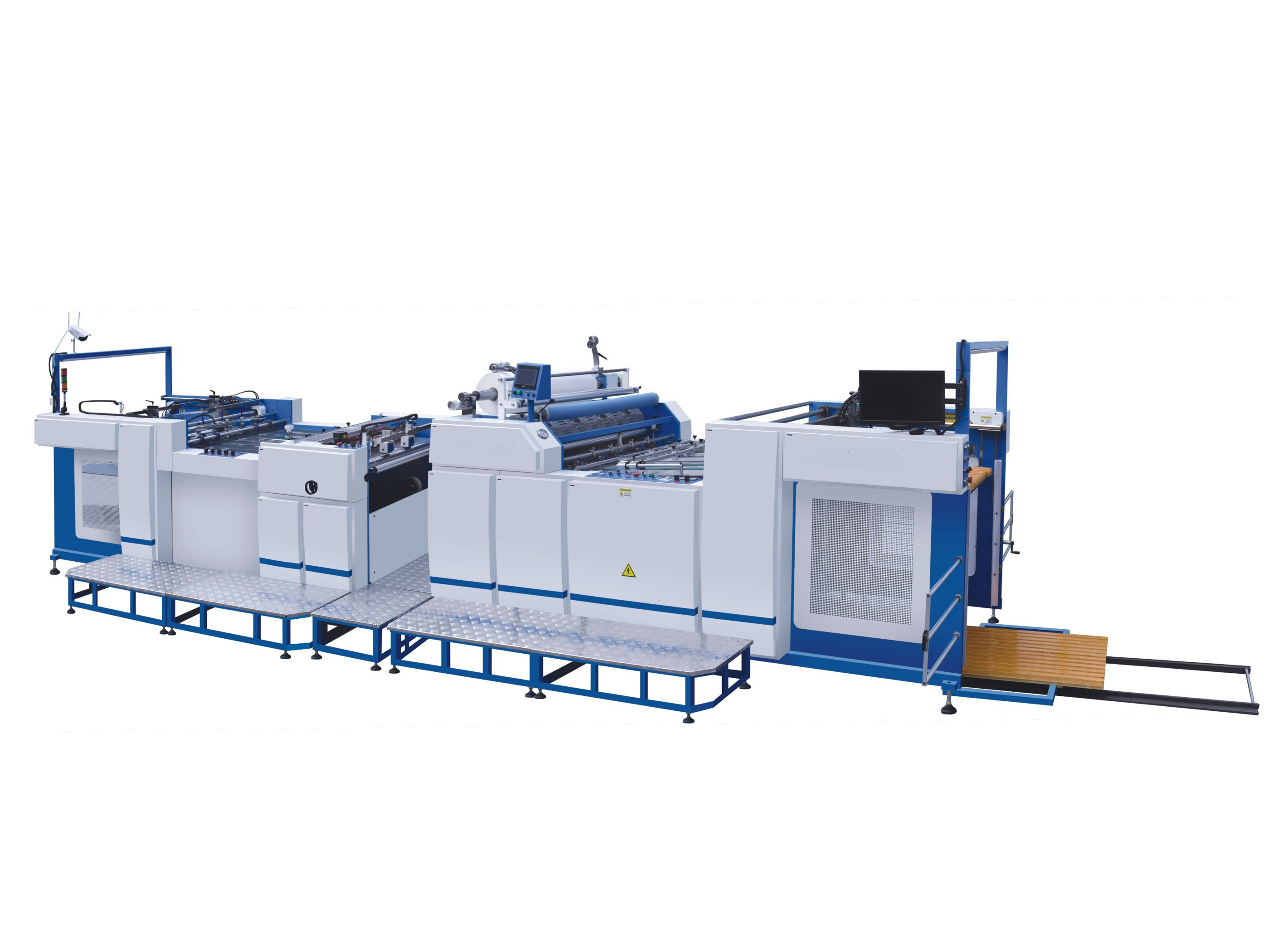

Automatic Thermal Film Laminator SPFM-800A/1080A
This machine is a kind of dual-function product which is for both thermal lamination film and glue less film. The electrical and pneumatic devices are controlled by PLC system, and can be operated by only one person. The operator can realize both laminating and separating processes at the same time as long as the size of workable paper is input on the text screen
Introduction
This machine is a kind of dual-function product which is for both thermal lamination film and glue less film. The electrical and pneumatic devices are controlled by PLC system, and can be operated by only one person. The operator can realize both laminating and separating processes at the same time as long as the size of workable paper is input on the text screen
Features
Air Feeder
Man-Machine Interface (easy and automatic operation)
Magnetic heating system
Hydraulic pressure (Automatic adjustment pressure )
Gas Expanded Shaft(with Tension System)
Film Cutter and Film Puncher
Pull Guide and Auto Pull
Anti-Curve Device
Pneumatic Dividing (with Auto Stacker)
Dividing Structure(wash and change roller easily
Technical Parameter
|
Model |
SPFM-800A |
SPFM-1080A |
|
Max. Laminating Width |
780×1000mm |
1080×1200mm |
|
Min. Laminating Width |
270×270mm |
300×340mm |
|
Laminating Temperature |
≤130℃ |
≤130℃ |
|
Paper Thickness |
105-500g/㎡ |
105-500g/㎡ |
|
Laminating Speed |
0-80m/min |
0-80m/min |
|
Total power |
25kW |
25kW |
|
Voltage |
220/380V |
220/380V |
|
Total Weight |
4000kg |
6000kg |
|
Overall Dimensions |
5800*1450*1600mm |
7550*2000*1900mm |
