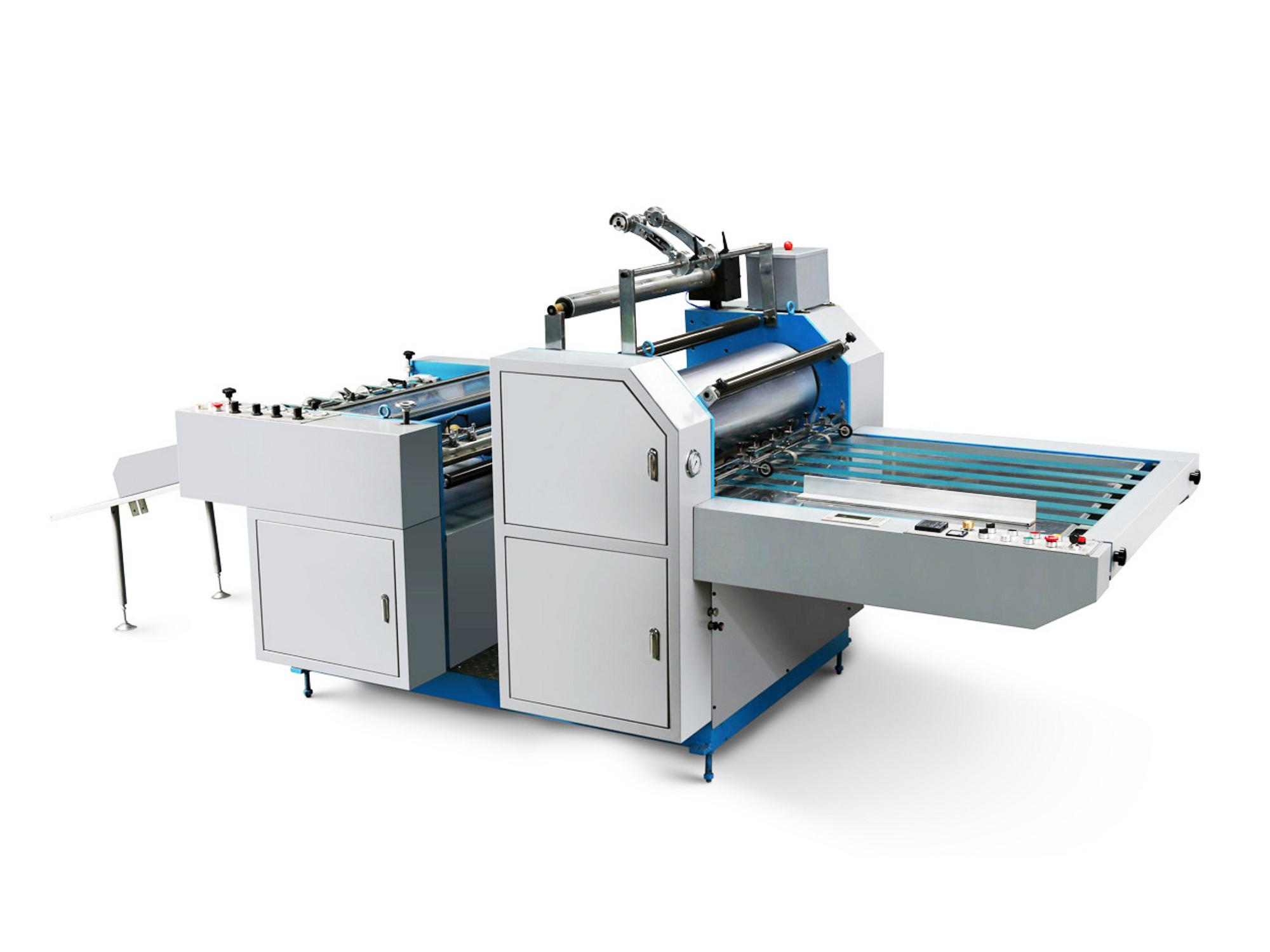

Semi-Automatic Thermal Film Laminator SPFM-720B/920B/1100B

This machine is a kind of dual-function product which is for both thermal lamination film and glue less film.

Introduction

This machine is a kind of dual-function product which is for both thermal lamination film and glue less film. The electrical and pneumatic devices are controlled by PLC system, and can be operated by only one person. The operator can realize both laminating and separating processes at the same time as long as the size of workable paper is input on the text screen


Features

With pneumatic front gauge, next paper will be pressed until the front paper is totally moved into heating cylinder

With automatic pressure boosting device

Equipped with high precision chromed oil heating cylinder (Φ320) and heat Resisting-pressing endurable rubber roller

With air expand shaft, it is more convenient to load and unload film

Adopting Anti-curvature device to level laminated paper, and it won’t curve again after separation.

With pneumatic slitter

With pneumatic film and paper separation device

With PLC control

With new mechanical design, it is easier to clean the rubber roller


Technical Parameters

Model

SPFM-720B

SPFM-920B

SPFM-1100B

Max. Paper Size (mm)

680

880

1040

Paper Range ( g/m2)

100-500

100-500

100-500

Laminating Speed (m/min)

0-30

0-30

0-30

Temperature of Laminating

130

≤130

≤130

Power Consumption (kW)

20

22

24

Weight of Machine (kg)

1700

1900

2100

 Dimension (mm) L×W×H

4600×1560×1500

4600×1760×1500

4600×1960×1500
