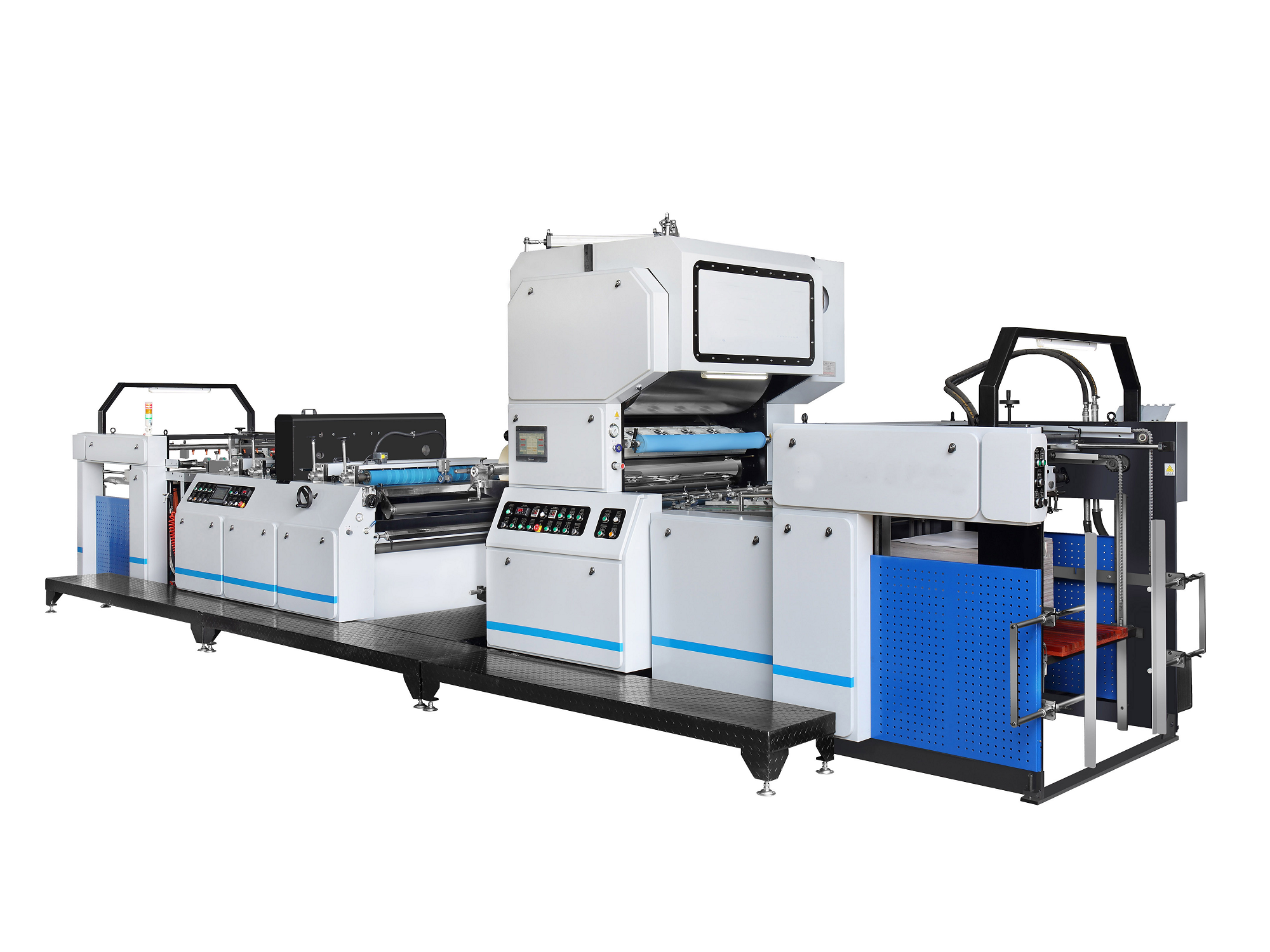

Automatic High Speed Film Laminator SPFM-1050D
It is applied in laminating processes with different material including water based, solvent-based, pre-coated and glueless film. This multi-functional machine is also energy efficient and environment friendly, applicable for manufacture of postcards, posters, books, magazines, brochures, package boxes, hand-bags, etc.
Introduction
It is applied in laminating processes with different material including water based, solvent-based, pre-coated and glueless film. This multi-functional machine is also energy efficient and environment friendly, applicable for manufacture of postcards, posters, books, magazines, brochures, package boxes, hand-bags, etc
Features
With ceramic mesh roller and glue by scraper
The pneumatic paper clapping device keep the paper collecting orderly and the frequency of paper clapping can be set
With PLC control
Equipped with double stations gummer (Cleaning power with brush and pressing powder with electrical heating)
With monitor and operation interface
The paper feeder is same as one used in high speed printing machine. The re-piling device and the nonstop device is connection are next to trolley
The cutting speed of rotary disc blade can be adjusted and the wheel is specially designed for separating film
The surface temperature of large size dryer cylinder and laminating cylinder is controlled by water temperature thermostat
Technical Parameters
Model
SPFM-1050D
Max. Applicable Dimension(mm)
1050×1450
Min. Applicable Dimension(mm)
320×320
Speed(m/min)
20-60
Applicable Paper Weight(g/m2)
100-500
Total Power(kW)
75
Dimension (m) L×W×H
13.5×2.7×3.5
Weight(kg)
10000
