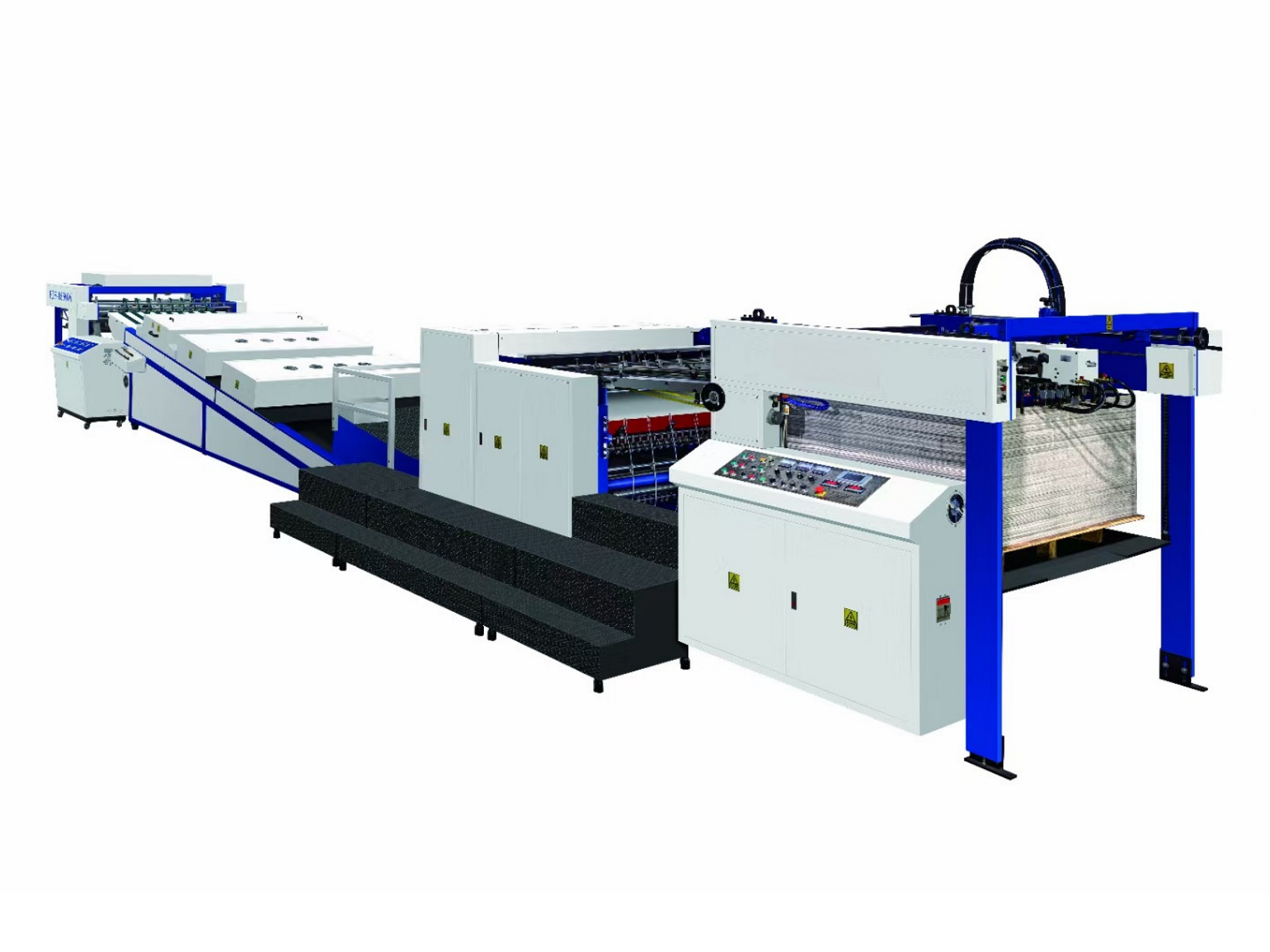

Automatic Spot UV Coating Machine SV-106/145/165
This machine is necessary to printing products after fine printing. All kinds of paper printed matter treated by this machine are not only improving the smooth finish of surface ,but also damp proof, dustproof, sun proof and wear-resistant of for the surface of printed matter especially after UV vanish Processing. The effect is comparable to laminating, calendaring treatment, and no film-drop, curly and back light defect.
A new generation spot coating machine SV-104 meets client and market demand and adapts to coating for long and short printing plate, snap-in paper feed is suitable for coating for thick and thin sheet, which can be used for local glazing as well as full glazing. Creative model design and highly automatically electrical design allow the machine to stand up to running up, which will bring high efficiency and profit for enterprises in coordination with high speed printer.
Introduction
This machine is
necessary to printing products after fine printing. All kinds of paper printed
matter treated by this machine are not only improving the smooth finish of
surface ,but also damp proof, dustproof, sun proof and wear-resistant of for
the surface of printed matter especially after UV vanish Processing. The effect
is comparable to laminating, calendaring treatment, and no film-drop, curly and
back light defect.
A new generation spot coating machine SV-104 meets client and market demand and
adapts to coating for long and short printing plate, snap-in paper feed is
suitable for coating for thick and thin sheet, which can be used for local
glazing as well as full glazing. Creative model design and highly automatically
electrical design allow the machine to stand up to running up, which will bring
high efficiency and profit for enterprises in coordination with high speed
printer.
Technical Parameters
| Model | SV-106 | SV-145 | SV-165 |
| Max. Sheet Size | 740×1060 mm | 1100×1450 mm | 1300×1650 mm |
| Min. Sheet Size | 310×406mm | 350×460mm | 500×460mm |
| Max. Coating Area | 730×1050 mm | 1090×1440 mm | 1290×1640 mm |
| Paper Thickness | 100-450 g/m2 | 125-600 g/m2 | 157-600 g/m2 |
| Max. Mechanical Speed | 8000 sheets/h （Depending on sheet weight, size and quality） | 6200 sheets/h (Depending on sheet weight, size and quality) | 5000 sheets/h (Depending on sheet weight, size and quality) |
| Total Power | 42kW (solvent base) /42kW (water base) | 57kW (solvent base) /47kW (water base) | 65kW (solvent base) /54kW (water base) |
| Dimensions | 11756×2300×2010mm | 12230×3100×1844mm | 13455×3970×1941mm |
| Total Weight | 8500kg | 9500kg | 12000kg |
