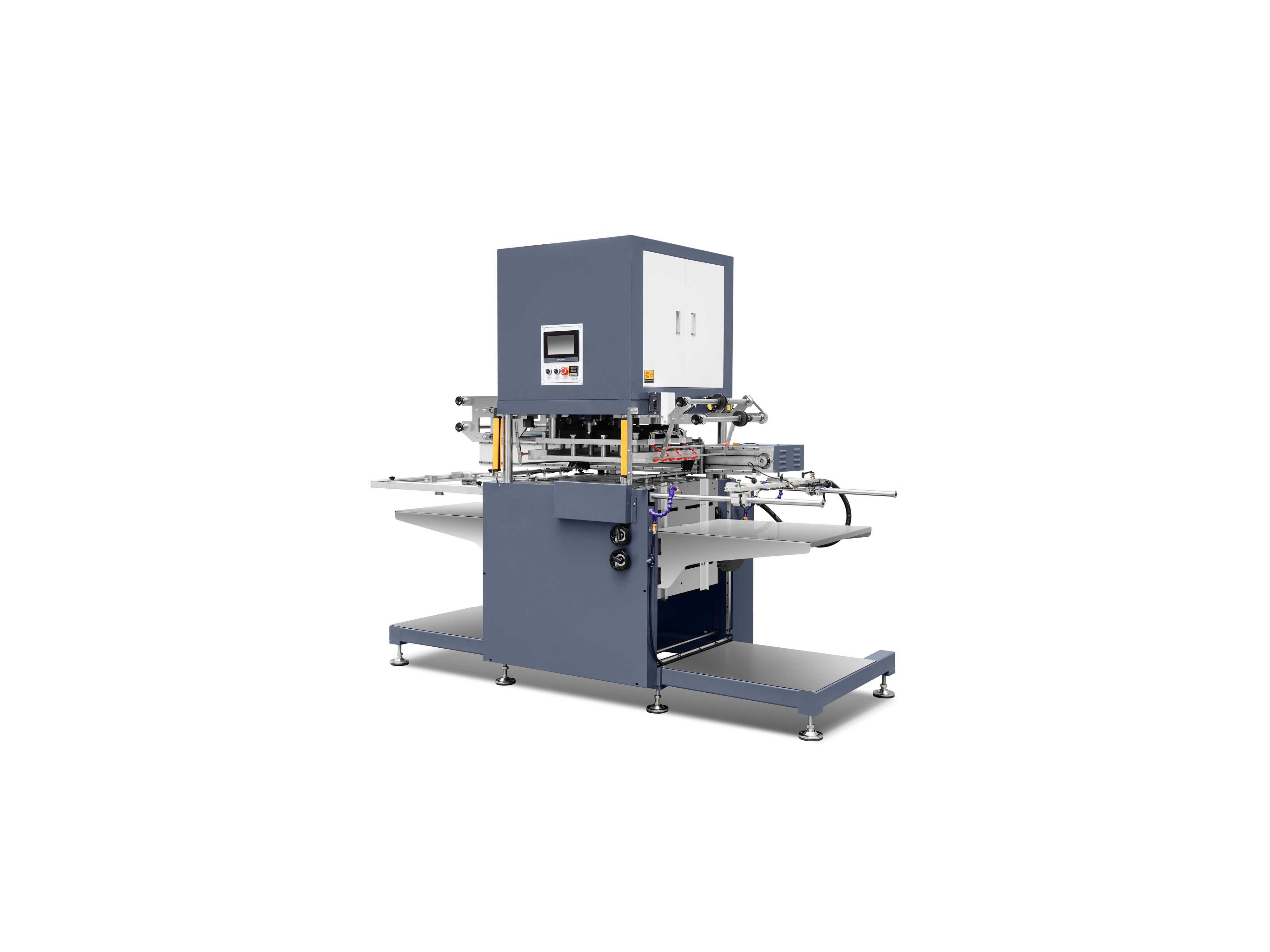

EASYstamp 55/75/55A/75A
It is used in foil stamping flat media such as congratulatory card, invitation card, red pocket, packing paper boxes and etc.,.
Introduction
It is used in foil stamping flat media such as congratulatory card, invitation card, red pocket, packing paper boxes and etc.,.
Features
PLC control
Stamping pressure, temperature and stamping time can be set
Enable the operator to adjust the feeding guide in longitudinal and transversal direction
Stamping plate goes up and down via touch sensitive LCD
Servo control feeding and paper collection guide by sensor
Feeding table can go up and down automatically
Programmable stamping
With infra sensor
Technical Parameters
| Model | EASYstamp 55 | EASYstamp 75 | EASYstamp 55A | EASYstamp 75A |
| Max. Feeding Paper Format (mm) | 550x500 | 750x550 | 550x500 | 750x550 |
| Max .Stamping Format (mm) | 280x280 | 500x500 | 400x400 | 600x500 |
| Paper Range (gsm) | 50-1500 | 50-1500 | 50-1500 | 50-1500 |
| Working Speed (times/min) | 1-35 | 1-30 | 1-30 | 1-25 |
| Max. Working Pressure (t) | 1 | 2 | 30 | 40 |
| Temperature | 20-200℃ | 20-200℃ | 20-200℃ | 20-200℃ |
| Max. Feeding Pile Height (mm) | 500 | 500 | 500 | 500 |
| Max. Delivery Pile Height (mm) | 500 | 500 | 500 | 500 |
| Foil Group | 1 | 2 | 2 | 2 |
| Air Source | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Power Supply | 4kW, 380V,50Hz 3P | 9kW, 380V,50Hz 3P | 8kW, 380V,50Hz 3P | 12kW, 380V,50Hz 3P |
| Weight (t) | 0.65 | 1.5 | 1.5 | 2.3 |
| Dimension (mm) | 1700x1150x1700 | 2700x1500x1900 | 1700x1150x2250 | 2700x1500x2200 |
Finished Product
