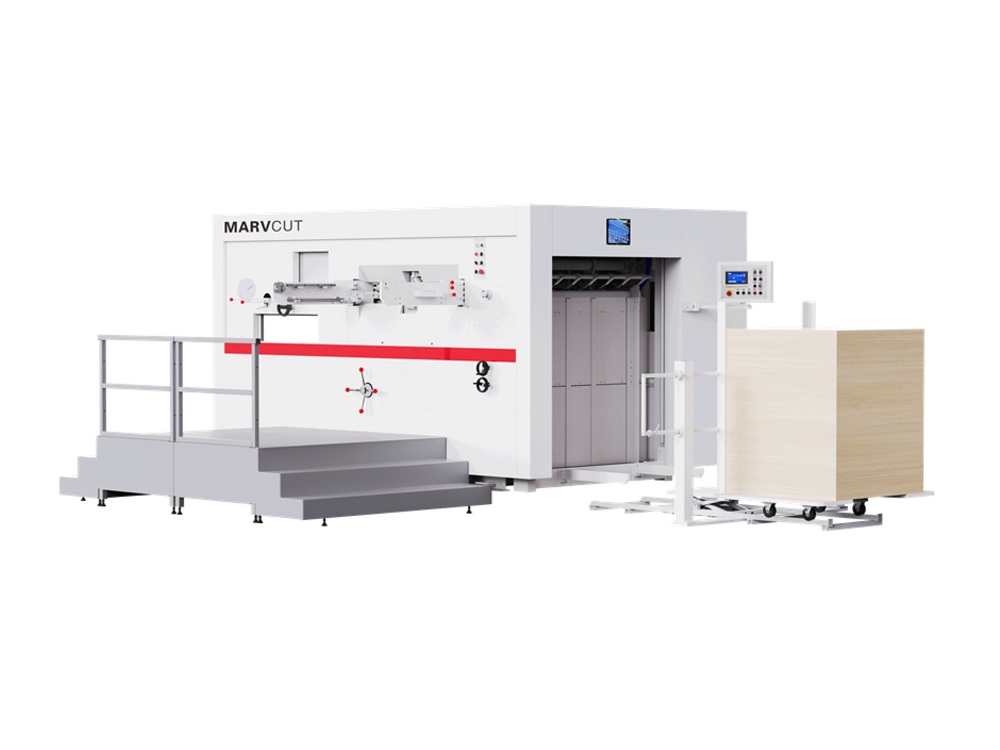

MARVCUT 106/130/150/165
This machine is mainly used for the die-cutting, creasing and cold embossing of carton box or label in packaging industry. It is with automatic die cutting station and automatic paper collecting but the feed is by hand. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Introduction
This machine is mainly used for the die-cutting, creasing and cold embossing of carton box or label in packaging industry. It is with automatic die cutting station and automatic paper collecting but the feed is by hand.The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand.To ensure the safety operation, the sensors and safety devices are equipped on the machine
Technical Parameters
|
Model |
MARVCUT 106 |
MARVCUT 130 |
MARVCUT 150 |
MARVCUT 165 |
|
Max. Feeding Paper Format (mm) |
1060×760 |
1300×950 |
1500×1100 |
1650×1200 |
|
Min. Feeding Paper Format (mm) |
450×360 |
550×480 |
550×500 |
650×520 |
|
Max. Die cutting Format (mm) |
1050×750 |
1290×920 |
1490×1090 |
1630×1180 |
|
Max. Working Pressure (t) |
300 |
350 |
400 |
400 |
|
Paper Range |
Corrugated ≤8mm(max) |
Corrugated ≤8mm(max) |
Corrugated ≤8mm(max) |
Corrugated ≤8mm(max) |
|
Cardboard ≥250g/m2 |
Cardboard ≥250g/m2 |
Cardboard ≥250g/m2 |
Cardboard ≥300g/m2 |
|
|
Die Cutting Precision (mm) |
±0.25 |
±0.25 |
±0.25 |
±0.25 |
|
Max. Speed (sheets/hour ) |
5000 |
5000 |
4500 |
4500 |
|
Max. Feeding Pile Height (mm) |
1300 |
1500 |
1500 |
1500 |
|
Max. Delivery Pile Height (mm) |
1200 |
1250 |
1350 |
1350 |
|
Main Motor Power Consumption (kW) |
11 |
15 |
18.5 |
18.5 |
|
Total Power Consumption (kW) |
13.5 |
17.3 |
21.5 |
22 |
|
Total Weight (t) |
14 |
15 |
16 |
18 |
|
Dimension (L×W×H) (mm) |
3684×38378×2500 |
5500×4270×2500 |
6250×4415×2500 |
6550×5000×2550 |
