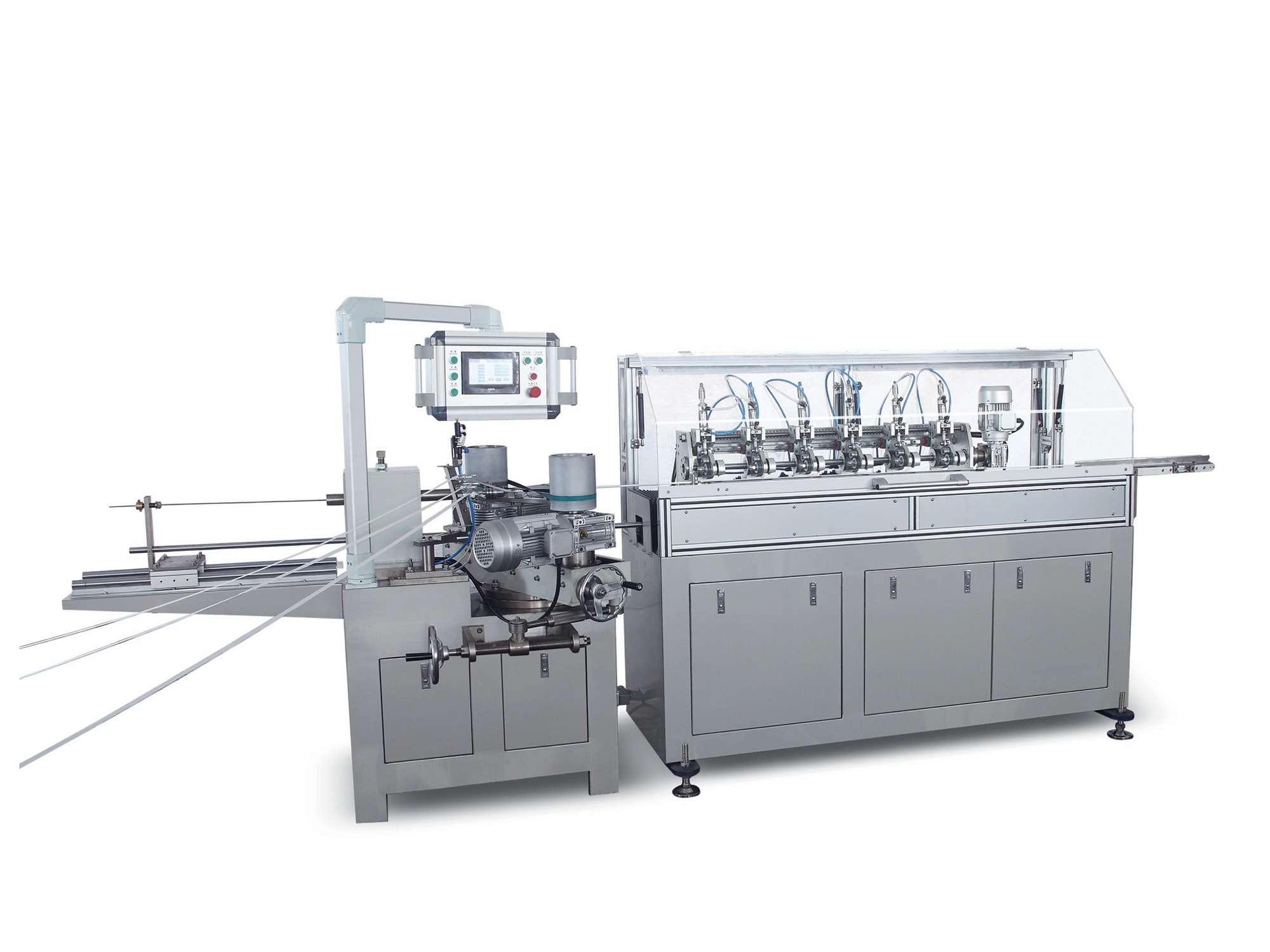

Paper Straw Making Machine PSM8-SS
Itintegratesfeeding, gluing, winding, cutting, conveying andcollecting. It is equipped with CNC multi-knife cutting system. It is suitable for 5-12mm diameter paperstraw.
Introduction
Itintegratesfeeding, gluing, winding, cutting, conveying andcollecting. It is equipped with CNC multi-knife cutting system. It is suitable for 3.8-12mm diameter paperstraw.
Technical Parameters
|
Model |
PSM8-SS |
|
Feeding Roller No. |
3-4 |
|
Paper Straw Inner Diameter |
3.8-12 mm |
|
Wall Thickness |
0.5-1 mm |
|
Cutting Length |
100-800mm |
|
Winding Head |
2 |
|
Cutting Way |
8 Mulit-Blades |
|
Gluing Way |
Single side/Double Sides |
|
Operator |
1-2 person |
|
Max. Winding Speed |
80 m/min |
|
Speed Control |
Inverter |
|
Cutting control |
Servo Sync |
|
Air pressure |
0.6Mpa |
|
Power supply |
380V*3P/50Hz |
Finished Product
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Paper Plate Machine SPP600/800
This layout: transmission unit under the working table and moulds above the working table are applied on the SPP600/800. Keep the transmission unit and moulds separate is more convenient for operator to clean and maintain. The whole working process: paper feeding, forming, dish ejecting, temperature constant controlling is fully automatic. It is specialized in producing round shaped, square shaped and irregular shaped paper plates.
Learn More
Carton Erecting Machine LT800
New-generation three-dimensional box machine is molding equipment specialized in producing various paper products, which can produce hamburger box, square box, food box (portable outside), and other boxes made by paperboard and corrugated paper, brochures, package boxes, hand-bags, etc.
Learn More
Paper Straw Packing Machine PSP-02
It is used to pack beverage straws into bags automatically with three-sided seals. The whole machine is composed of driving motor, transmission system, paper unwinding device, straws filling device, automatic sealing device, finished product conveying device and so on. It has a high degree of automation and production speed. Printing, filling and packaging are completed at one time.

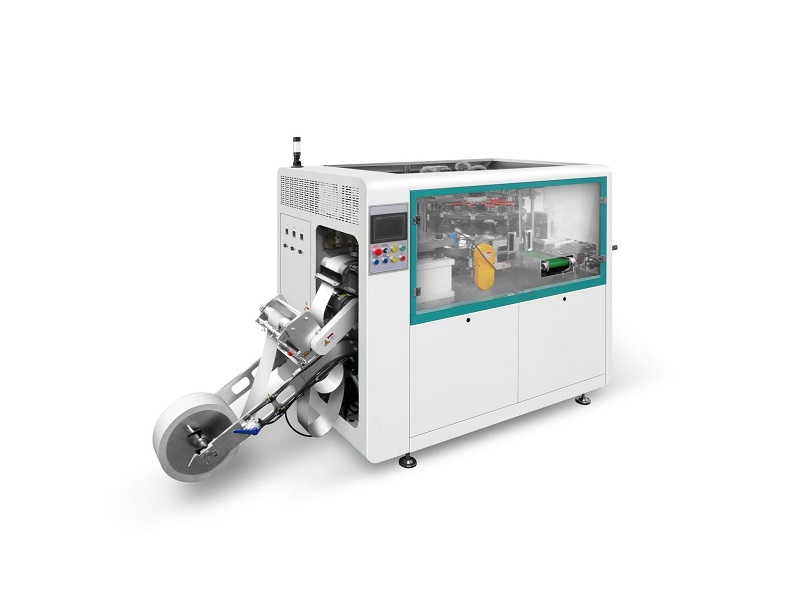

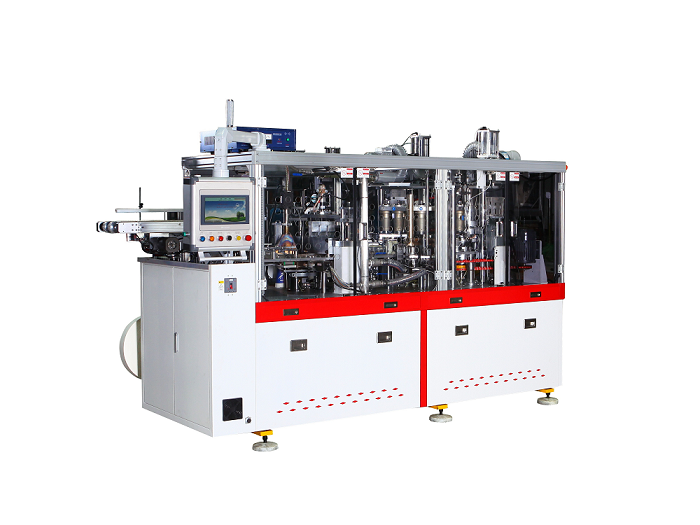

Paper Cup/Bowl Machine
