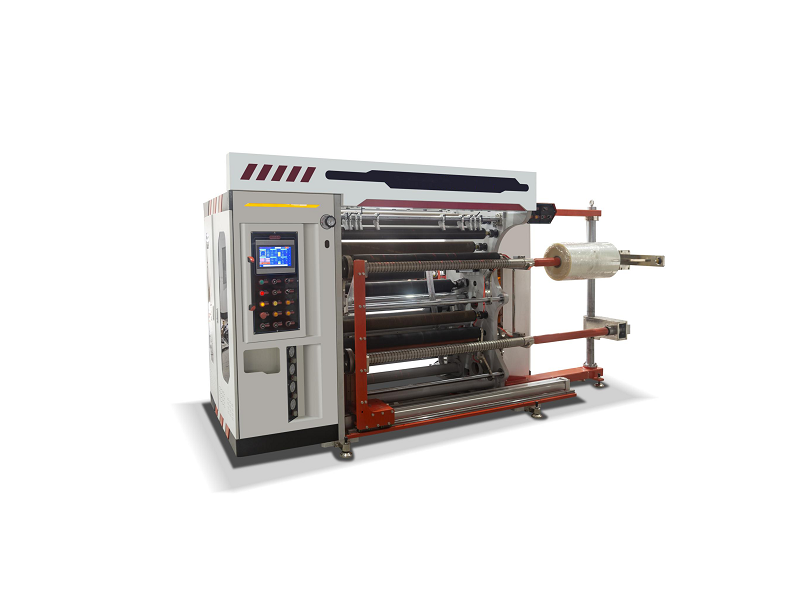

Slitter Rewinder C series
Usually, plastic films, such as PET, PP, PVC, and PE films, are thin and the thickness varies across the web. A big roll is produced by the film-blowing machine and is needed to slit into narrow-width rolls so that they can be used to print, laminate, or others. Thus a high-speed, highly precise slitter rewinder is necessary to convert jumbo rolls to several small rolls
Introduction
Usually, plastic films, such as PET, PP, PVC, and PE films, are thin and the thickness varies across the web. A big roll is produced by the film-blowing machine and is needed to slit into narrow-width rolls so that they can be used to print, laminate, or others. Thus a high-speed, highly precise slitter rewinder is necessary to convert jumbo rolls to several small rolls
Technical Parameters
| Model | SR-1100C | SR-1300C | SR-1600C |
| Max. Unwinding Width (mm) | 1100 | 1300 | 1600 |
| Max. Unwinding Diameter (mm) | Φ800-1200 | Φ800-1200 | Φ800-1200 |
| Min. Slitting Width (mm) | 30 | 30 | 30 |
| Max. Rewinding Diameter (mm) | Φ700 | Φ700 | Φ700 |
| Speed (m/min) | 600 | 600 | 600 |
| Total Power Consumption (kW) | 22 | 22 | 24 |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Weight (kg) | 4000 | 4200 | 4400 |
| Dimension (L×W×H) (mm) | 4500×2700×2100 | 4500×2900×2100 | 4500×3200×2100 |
