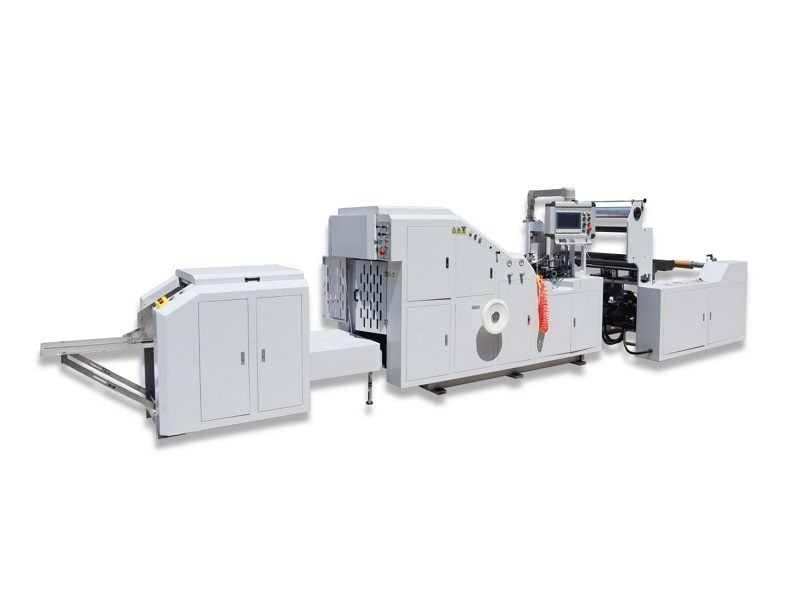

Square Bottom Paper Bag Making Machine
This roll fed flat handle paper bag making machine is designed for printing roll paper, including primary color paper and kraft paper, as well as completing the production of paper rolls such as food paper in a single process. It offers automatic center gluing, raw material tube formation, length cutting, bottom indentation, and bottom folding. The roll fed flat handle paper bag making machine also applies glue to the bottom and shapes the bottom of the bag. With its convenience, efficiency, and stability, this environmentally friendly paper bag machine produces various types of paper bags, including snack food bags, bread bags, and dried fruit bags, providing a comprehensive bag finishing solution.
Introduction
This roll fed flat handle paper bag making machine is designed for printing roll paper, including primary color paper and kraft paper, as well as completing the production of paper rolls such as food paper in a single process. It offers automatic center gluing, raw material tube formation, length cutting, bottom indentation, and bottom folding. The roll fed flat handle paper bag making machine also applies glue to the bottom and shapes the bottom of the bag. With its convenience, efficiency, and stability, this environmentally friendly paper bag machine produces various types of paper bags, including snack food bags, bread bags, and dried fruit bags, providing a comprehensive bag finishing solution
Technical Parameters
| Model | SPFD-220 | SPFD-330 | SPFD-450 |
| Cutting Length | 190-430mm | 270-530mm | 270-530mm |
| Paper Bag Width | 80-220mm | 120-330mm | 210-450mm |
| Bottom width | 50-110mm | 60-180mm | 90-180mm |
| Paper bag thickness | 50-150g/㎡ | 60-150g/㎡ | 80-150g/㎡ |
| Mechanical speed | 30-260pcs/min | 30-220pcs/min | 30-220pcs/min |
| Paper bag speed | 30-200pcs/min | 30-180pcs/min | 30-150pcs/min |
| Paper roll width | 297-710mm | 380-1050mm | 660-1290mm |
| Paper diameter | 1300mm | 1300mm | 1300mm |
| Inner diameter of paper | 76mm | 76mm | 76mm |
| Total power | 380V 3phase 4line 11.5kw | 380V 3phase 4line 15kw | 380V 3phase 4line 15kw |
| Total Weight | 6000kg | 8500kg | 9000kg |
| Overall size | 8500*3500*2200mm | 10000*3700*2200mm | 10000*3800*2200mm |

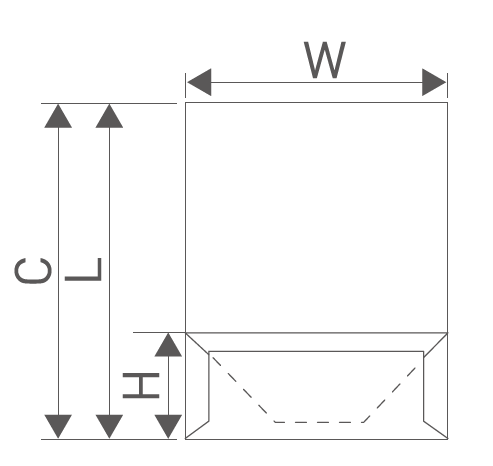

Blank Drawing

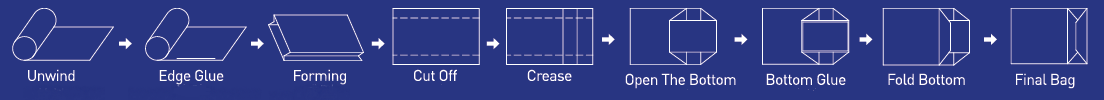

Craft Flow

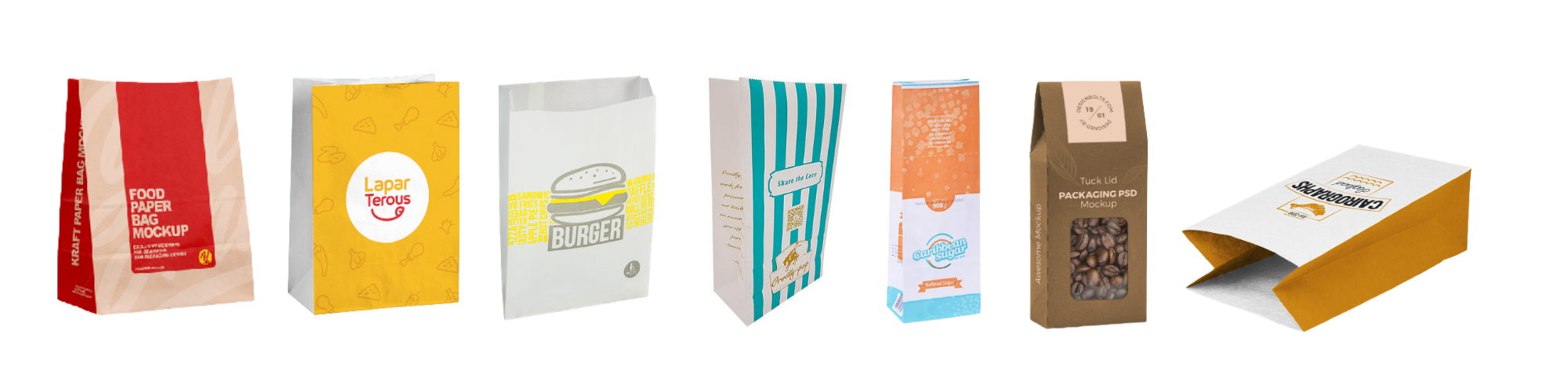

Finished Product
