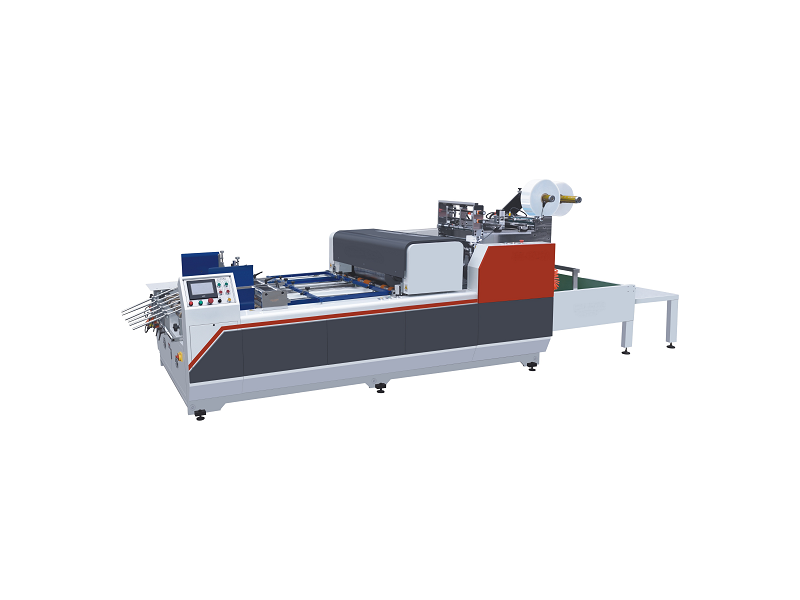

WINDOW PATCHER 1080Agile
WINDOW PATCHER 1080Agile is widely used in the window patching to the liquor box, gift box, tissue box, cosmetic box, toy box, etc. It can be used for window film cutting, creasing, gluing and patching of card.
Technical Parameters
|
Model |
1080Agile |
|
|
g/m2 |
Card board:150-1200 Corrugated≤3mm |
|
|
Output per hour |
pieces |
8000 |
|
Blank length |
mm |
|
|
inch |
4.33-30.7 |
|
|
Blank width |
mm |
110-1100 |
|
inch |
4.33-43.3 |
|
|
Film length |
mm |
|
|
inch |
2.56-16.93 |
|
|
Film width |
mm |
30-500 |
|
inch |
1.18-19.68 |
|
|
Film thickness |
mm |
CPE/PE:0.1-0.3 PVC:0.08-0.3 APET/PET:0.06-0.3 |
|
Connected load |
kW |
7 |
|
Weight |
kg |
2800 |
|
Dimensions |
mm |
5500x1700x1600 |

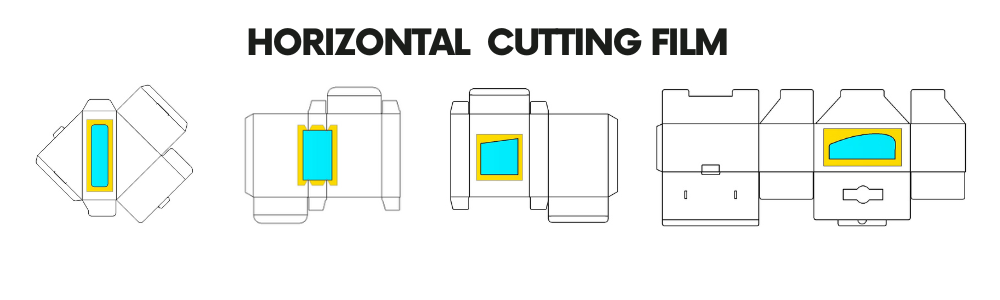

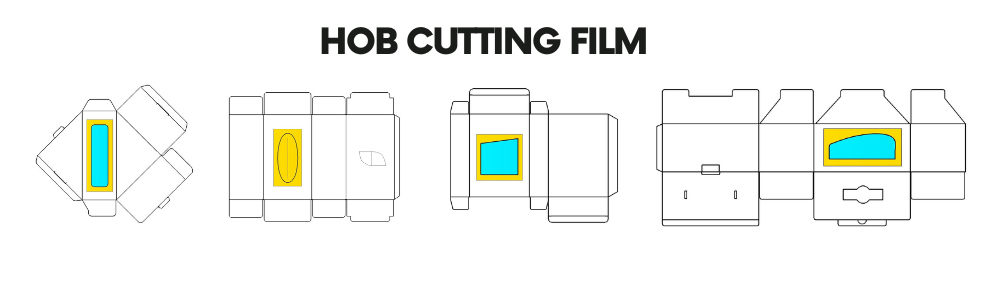

Blank Drawing
P.S.: Horizontal Cutting Film or Hob Cutting Film shall be selected by buyer before ordering 1080Agile.
Equipped with both Horizontal Cutting Film and Hob Cutting Film in 1080Agile is not practicable.
Exchange the cutting film way in one ready 1080Agile is not practicable.
