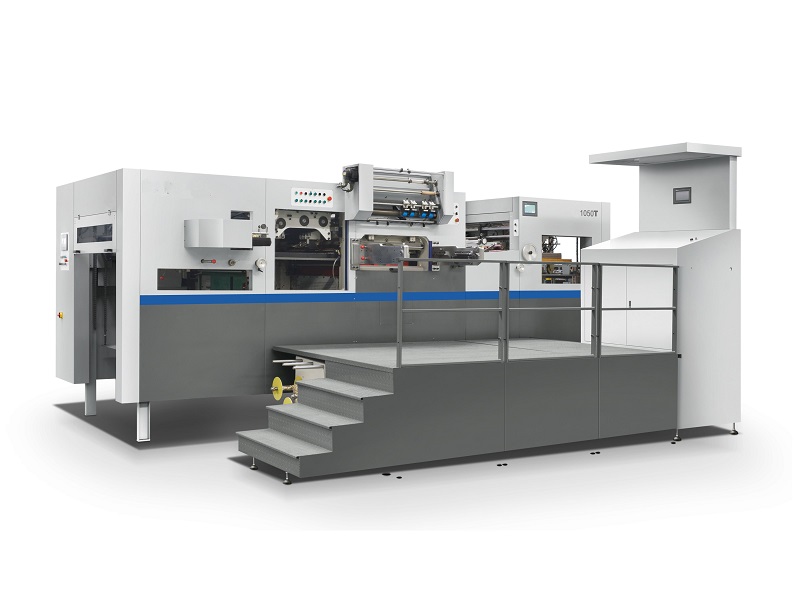

MARVFOIL 105T
This machine is mainly used for the stamping, embossing, die-cutting and creasing of carton box or label in packaging industry. From paper feeding to paper delivery, the whole working process is fully automatic.
Introduction
This machine is mainly used for the stamping, embossing, die-cutting and creasing of carton box or label in packaging industry. From paper feeding to paper delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Technical Parameters
|
Model |
MARVFOIL 105T |
|
Max. Feeding Paper Format |
1050×750mm |
|
Min. Feeding Paper Format |
400×360mm |
|
Max. Die cutting Format |
1040×730mm |
|
Max .Stamping Format |
1020×720mm |
|
Max. Working Pressure |
650t |
|
Paper Range |
Corrugated ≤4mm(max) |
|
Cardboard ≥80g |
|
|
Min. Gripper Margin |
9.5mm |
|
Die cutting Precision |
±0.1mm |
|
Stamping Precision |
±0.1mm |
|
Max. Die Cutting Speed |
7500 sheets/hour |
|
Max. Stamping Speed |
6000 sheets/hour |
|
The Number Of Heating Zones |
12 |
|
Foil Group |
5 |
|
Max. Feeding Pile Height |
1600mm |
|
Max. Delivery Pile Height |
1400mm |
|
Total Power Consumption |
65kW |
|
Total Weight |
20t |
|
Dimension (L×W×H) |
7181×4091×2523mm |
